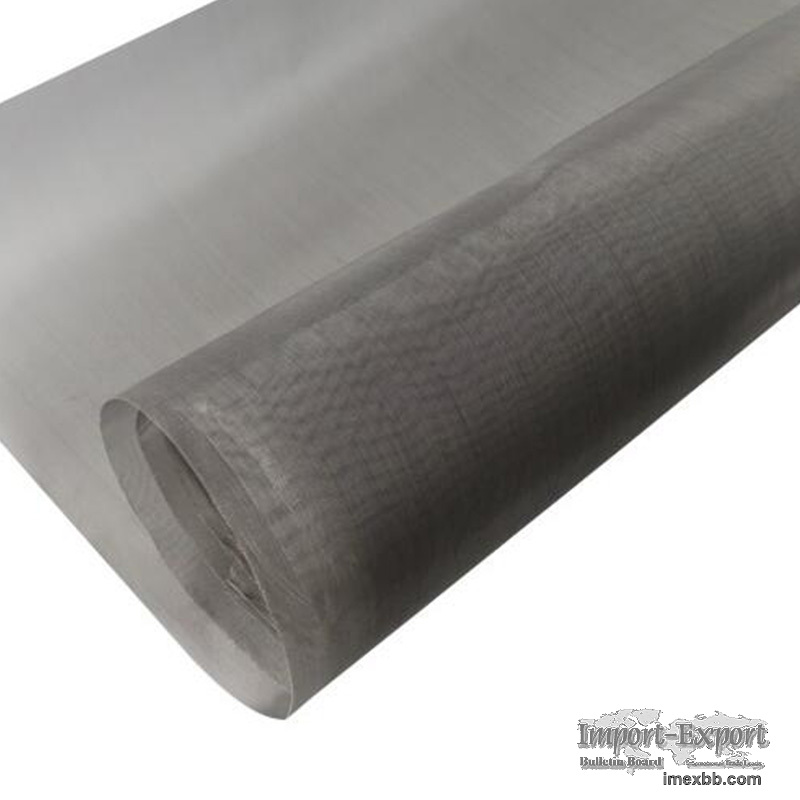

Stainless Steel Plain Woven Mesh

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the
process of weaving clothing, but it is made of wire. The mesh can be woven in
different weave styles. Its purpose is to produce solid and reliable products
to adapt to various complex application environments.High precision technology
makes the production cost of woven wire mesh higher, but it also has a very
wide range of uses.
The main materials are 304 stainless steel wire mesh, 316 stainless steel wire
mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430
stainless steel wire mesh, and other stainless steel grade. The most popular
ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which
can be used in most application environments and are not expensive. And some
special materials are used to meet the high requirements of the use
environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh,
Pure Nickel Mesh, and Pure Silver Mesh, etc.
WOVEN WIRE WEAVE STYLES
The Plain Wire Cloth Weave is the most common wire cloth used and it is one of
the simplest wire cloths. The plain wire cloth is not crimped before weaving,
and each warp wire passes over/under the wires running through the cloth at 90
degree angles.
Features
Stainless steel wire mesh have the features of wear resistance, heat-resisting,
acid-resisting, alkali resisting, durable structure, and corrosion resistance.
Meantime stainless steel woven mesh also have high temperature resistance, good
electric conductivity and washing resistance.
