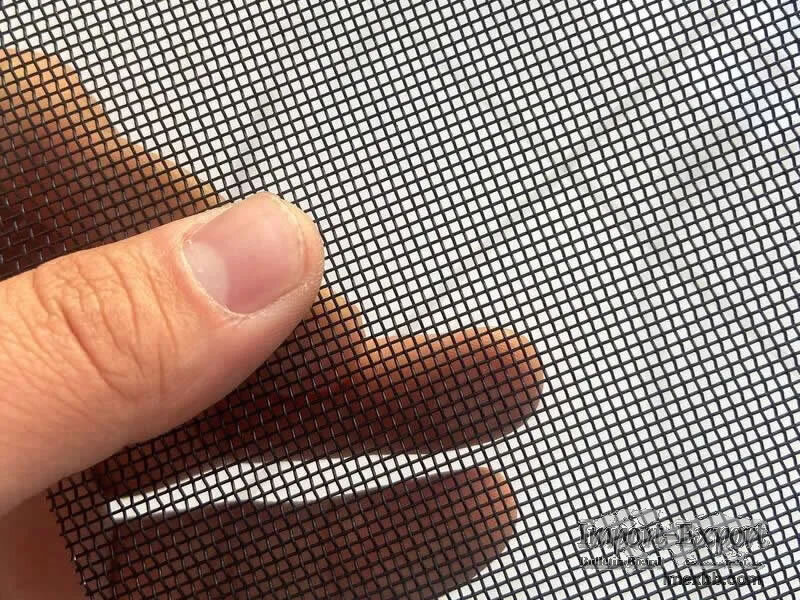

Stainless Steel Security Mesh

We supply premium stainless steel security mesh in 304 and 316 grades. Standard
specs cover 10, 11 and 12 mesh with wire diameters from 0.7mm to 1.0mm.
Available in natural stainless steel, black and dark grey powder coated
finishes. It features good ventilation and clear visibility, delivering
reliable anti-theft protection for doors, windows and balconies. 304 suits
inland areas while 316 works well for coastal salt-spray environments. Custom
sizes and fabrication services are offered.
We produce heavy-duty woven stainless steel security mesh for anti-theft doors,
window screens, balcony guards and ventilation panels. It ensures smooth
airflow and clear vision, with better security than ordinary insect mesh.

304 grade is for inland residential and commercial use; 316 grade features
superior corrosion resistance for coastal and high-humidity areas. Finishes
include natural stainless steel, black and dark grey powder coating. Please
confirm mesh, wire size, dimension and frame type before ordering.

Specifications
Material: 304 / 316 stainless steel

Wire Diameter: 0.7mm, 0.8mm, 0.9mm, 1.0mm

Mesh Count: 10 mesh, 11 mesh, 12 mesh (per inch)

Aperture: 1.4mm ~ 1.7mm (varies by mesh & wire diameter)

Weave Type: Plain weave

Surface Finish: Natural, black powder coated, dark grey powder coated

Standard Width: 750mm, 900mm, 1000mm, 1200mm, 1500mm

Standard Length: 2000mm, 2400mm, 3000mm; custom cut available

Product Form: Roll, flat panel, framed screen

Packing: Rolls with paper tube & film; panels with edge protection

Note: Overall security performance relies on mesh, frame, lock and
installation. Confirm test standards for certified projects.
