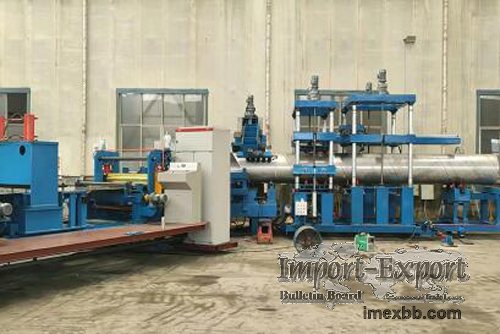

STAINLESS STEEL SPIRAL WELDED PIPE PRODUCTION LINE

The stainless steel spiral welded pipe unit adopts front-swing intermittent
production, which is a complete set of spiral steel pipe manufacturing machine
integrating machinery, electrical automation control and hydraulic control.

SPECIFICATION OF STAINLESS STEEL SPIRAL WELDED PIPE PRODUCTION LINE
Forming direction Front swing, intermittent production, center
positioning
Forming direction Left feed, right rotation molding
welding speed 0.5～2m/min
Forming method Three-roll bending forming, external control roll sizing,
internal expansion plate auxiliary forming
welding equipment TIG welding machine WS1000
Welding method Internal welding, argon arc automatic welding without filler
wire
Host installed capacity 100 KVA

PRODUCT (STEEL PIPE) PRODUCTION PROCESS
Uncoiling→pinch leveling→vertical roller→shear butt welding→vertical
roller→delivery machine→guide plate→forming→internal welding→flying
cutting of centralizer→drawing out

STAINLESS STEEL SPIRAL WELDED PIPE PRODUCTION LINE EQUIPMENT COMPOSITION

Device name Quantity
Host device
1 Uncoiler 1
2 Pinch Leveler 1
3 Electric Vertical Roller 2
4 shear butt welding 1
5 delivery machine 1
6 Guides 1
7 Forming Machine 1
8 front bridge 1
9 Internal welding device 1
10 rear bridge 1
11 centralizer 1
12 fly cutter 1
13 Embedded parts 1
14 Auxiliary parts such as walking platform 1
15 Host hydraulic system 1
16 Host electrical system 1
17 Huarong Plasma LGK100 1
18 Jaguar air compressor(0.9m3) 1
19 Zhengte or Aotai WS315 argon arc welding machine 1
20 Zhengte or Aotai WS500 argon arc welding machine 1
21 Connecting cables between equipment (excluding cables before the main
electrical cabinet of the equipment) 1

Now the price of ss pipe making machine is reasonable, if you have needs,
please contact us.

Minimum Order: 4 sets

Click to Enlarge
