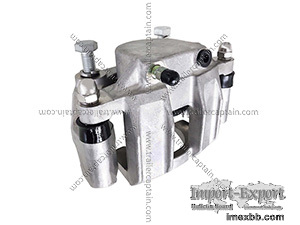

Stainless Steel Trailer Hydraulic Disc Brake Caliper

√

Boat Trailer Hydraulic Disc Brake

√

Hydraulic Disc Brake Caliper

√

Hydraulic Disc Brakes

√

1400 KG (15”/16” WHEEL)

√

Trailer Calipers

√

1600 KG (13”/14” WHEEL)

√

Hydraulic Brake Caliper

√

Stainless Steel Brake Caliper

√

Trailer Brakes Caliper

√

Ceramic Brake Pads




The trailer brake caliper is stainless steel material, it has a phenolic
piston and two pieces of ceramic brake pads. Upgraded trailer calipers have
high rust-protection, high corrosion resistance and excellent anti-wear
performance. The hydraulic trailer brake calipers suitable for boat
trailers, box trailers and car trailers. This caliper will fit AL-KO
trailer hydraulic disc brakes that use a 5 or 6 lug trailer disc rotor.
Other specifications are same as the cast iron trailer hydraulic disc brake
type.

Features

l Used with IQ7 or hydraulic over ride couplings (the load weights
exceeding 2000 kg).

l Requirement of disc hubs and rotors: Thicknesses from 12 mm to 15 mm.

l Stainless steel caliper body and pads backing plate can prevent the
corrosion of seawater.

l Mounting bolts, spring washers and pads are included. Quick and easy
installation.

l This hydraulic disc brake calipers exchange with AL-KO and Trojan
calipers, but have different appearance.

Specifications

Ø Axle Capability: 1400 kg (15”/16” wheel), 1600 kg (13”/14” wheel)

Ø Mounting Bolts: 12mm H.T. x 45mm

Ø Bolt Spacings: 88.9mm (3.5”)

Ø Recommended operating pressure: 6.9 mpa (1000psi)

Product Composition

² Non-asbestos semi-metal brake pads x 2

² Galvanized Cast Iron Brake Caliper Body x 1

² Bleed Screw x 1

² Phenolic Resin Piston x 1

² Piston Seal x 1

² Piston Dust Boot x 1

² Slide Pin Kit x 1

² Slide Dust Boot x 2

Minimum Order: 400 pieces
