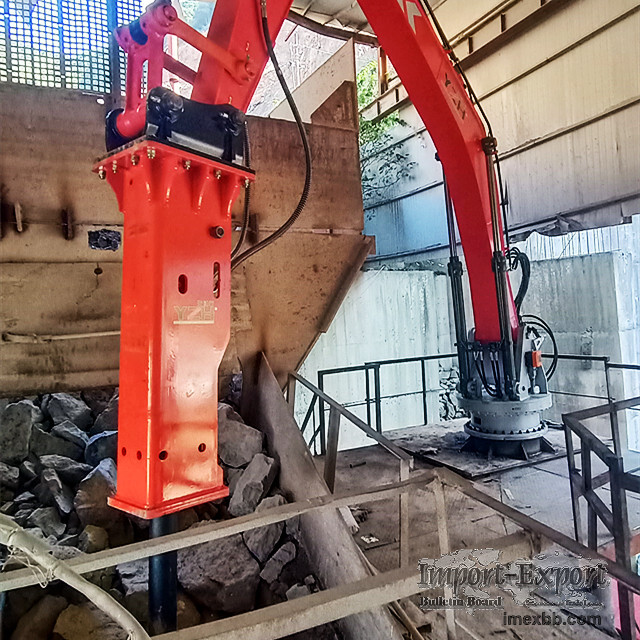

Static Boom

Static Boom
WHA560 Static Boom deeply integrates modern crushing equipment with traditional
sand production process, and through technological innovations such as
intelligent control, long-distance communication, and environment sensing,
Static Boom creates a heavy-duty construction machinery equipment that combines
safety, efficiency, and flexibility. Whether it is a fixed jaw crusher opening,
gyratory crusher inlet, or mobile crushing plant, WHA560 Static Boom can
accurately cope with the processing needs of oversized materials, becoming an
indispensable “blockage-breaking expert” in mining operations.
Core features
The core competitiveness of WHA560 static boom stems from its hard-core
technical configuration and humanized design details, which embodies the design
concept of “Heavy-duty and Durable, Flexible and High-efficiency” from the
structure to the function, and the specific features are as follows:
The base boom has excellent performance: it adopts heavy-duty, durable and
high-strength steel structure, and the maximum payload can reach 9000
kilograms, which can easily cope with heavy material handling and crushing
operations. The lubrication system can be selected flexibly, either with
Lincoln brand centralized automatic lubrication system to realize unmanned
maintenance and reduce human intervention, or with centralized manual
lubrication system to meet the maintenance needs of different scenarios, and
support customized configuration to adapt to diversified operating
environments.
Powerful and reliable power and hydraulics: A powerful drive unit consisting of
a 30 kW motor and a hydraulic pump with a hydraulic flow rate of up to 90
liters per minute provides sufficient power for flexible operation of the
static boom and crushing work. For special environmental requirements, the
Arctic package can be equipped to ensure stable operation at temperatures as
low as -40°C, breaking through the climate limitations. The hydraulic system
adopts quick coupling design, which supports the quick replacement of
attachments and the rapid switching of different working parts such as crushing
hammer and grapple, which greatly enhances the versatility and adaptability of
the static boom.
Easy to operate and highly flexible: Equipped with an easy-to-operate control
handle, the operating logic is simple and intuitive, allowing even novices to
get started quickly and reducing personnel training costs. The static boom can
rotate 360° and has a maximum working radius of 6,710 millimeters, covering a
wider working area, and can be flexibly adjusted to handle blockages or
oversized materials in confined spaces or under complex working conditions.
Diversified Applications
WHA560 static boom has a wide range of application scenarios, covering almost
all areas of heavy industry where heavy materials need to be handled, and its
core value lies in replacing manual labor through mechanized operation to
achieve the double enhancement of safety and efficiency.
The static boom is used in quarries and open pit mines to remove oversized
boulders from crusher inlets and discharge points in loading areas. In
traditional operations, manual handling of such boulders is not only time-
consuming and laborious, but also faces a high risk of being injured by falling
rocks. The static boom can accurately move boulders to the designated area or
crush them directly through remote control, which not only ensures operational
safety, but also quickly clears the blockage points, ensures the continuity of
material transportation, and significantly improves the overall production
efficiency of the quarry.
In underground metal mines, due to the narrow space of ore access openings and
dumping points, it is difficult for large equipment to enter, and manual
handling of oversized materials is extremely inefficient and poses safety
risks.With its compact structural design and flexible boom operation, the
static boom can work freely in the limited space, efficiently handle and crush
oversized ores, effectively improve the efficiency of underground material
flow, and reduce the downtime due to clogged materials. The compact design and
flexible jib operating capability of the static boom allows it to operate in
limited space, efficiently handling and crushing oversized ores.
In addition, the static boom also plays an important role in heavy industries
such as demolition, construction and recycling. When confronted with heavy and
bulky construction or recycling materials, as well as large objects that are
difficult to handle manually, the static boom can break them down through its
powerful hydraulic crushing function, and then combine it with its flexible
handling capability to realize centralized material handling. Whether it's a
dangerous demolition site or an inefficient manual handling scenario, the
static boom can optimize the process through mechanized operation, reduce
manual labor intensity, and avoid safety accidents at the same time.
WHA560 Static Boom has become the core equipment for solving the problem of
material clogging and improving operational efficiency in heavy ind ustry by
virtue of its high-strength structure, powerful power system, flexible
operational performance and wide adaptability to various scenarios. It not only
redefines the material handling mode of mining and heavy industry, but also
provides solid technical support for enterprises to realize safe, intelligent
and efficient production.

Minimum Order: 1 sets
