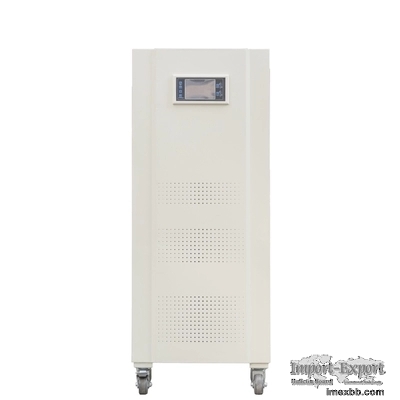

STATIC / Non Contact AC Voltage Stabilizer 180KVA Intelligent 380V

Product Description
STATIC / Non Contact AC Voltage Stabilizer 180KVA Intelligent 380V

ZSBW non-contact voltage regulator series adopts LCD liquid crystal display
screen,through the LCD screen can visual display voltage, current, parameters
such as fault status, way of working.The voltage regulation accuracy, output
voltage, working mode,etc. Can be set by panel, simple operation.

Product features

1.User-friendly HMI, large-screen LCD display, enable to know all of system
voltage, work current, status and other information;
2.Using a combined transformer compensation,SCR non-contact switch,optical
coupling isolation industrial MCU control and other advanced technology;
3.Non-contact, Anti-interference, maintenance-free, no mechanical error and no
wear of carbon brush
4.Split-phase adjustment automatically, automatic balance of three phases,
stable performance, reliable
5.Fastest regulator: adjust the voltage to the output voltage rating of 40ms
6.State display, Error indication, Alarm reminders, Regulated power supply and
bypass switching function
7.With the function of protection against overload, overvoltage, under voltage,
phase lack, short circuit, delay output
8. lightning protection, filtering function(Optional)
9.capable of overload, suitable for resistive, capacitive, inductive and mixed
loads

Main Technical Data:

Operation method

Intelligent SCR control

Input Voltage range

380V/220V( can customize various voltage)

Input frequency

Plus or minus ±15%~±60% (larger range can be customized)

Output rated voltage

380V/220V( can customize various voltage)

Output Voltage accuracy

±1%

Filter distortion

No additional waveform distortion ( static state)

Efficiency

≥98%

Powe , r factor

0.8

Response time

≤0.02s

Anti-interference
< , br>Arrester, EMI filter, LC filter(optional)

Over-voltage protection

Output phase voltage 10%, cut-off input or transfer to bypass

Overload protection

Electronic detection, cut off input in three minutes

Bypass protection

Automatically transfer to bypass in case of failure

Phase lack protection

Cut-off automatically

Overload ability

5 time rated current 1 second

Liquid crystal display

Voltage, Current, Abnormal

Alarm

LED display and alarm

Ambient temperature

-15~45°C

Altitude

Less than 4000M

Noise

Less than 45dB(1 m distance)

Cooling system

Cooling fan
