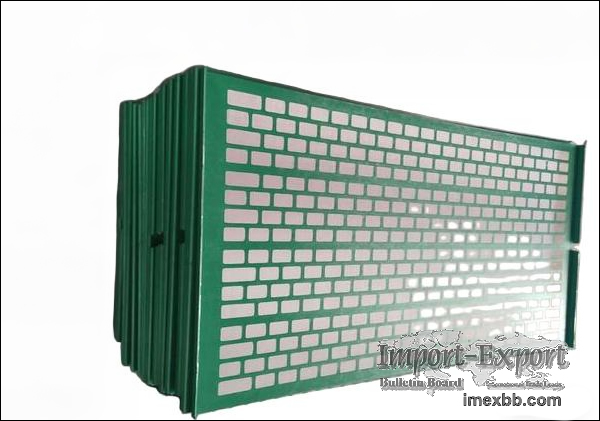

Steel Framed Shake Shaker Screen

Shale shaker screens are essential filtration elements used in oil and gas
drilling, mining operations, and industrial wastewater treatment. Their primary
function is to remove drilled cuttings, sand, and solid particles from drilling
fluid, ensuring stable mud circulation, reduced equipment wear, and improved
drilling efficiency.

Hexagonal Mesh Shale Shaker Screen
hexagonal steel frame shale shaker screen 630×1250 mm stainless steel mesh for
oilfield solids control

Specifications & Dimensions

Screen Type: Hexagonal hole steel frame
Mesh Material: 304 / 316 stainless steel multi-layer
API Rating: API 60 – API 270
Panel Size: 585 × 1165 mm, 630 × 1250 mm, 700 × 1050 mm
Open Area: 40–45% effective filtration area
Characteristics: Strong against vibration, ideal for high-viscosity mud
Pyramid / Replacement Shaker Screen
pyramid shaker screen replacement for fc 500 corrugated composite panel API 70-
325

Specifications & Dimensions

Screen Style: Pyramid / corrugated panel
Material: SS304 & SS316 mesh with composite backing
API Rating: API 70 – API 325
Panel Size: 710 × 626 mm (FC 500) or 1230 × 635 mm (FC 600)
Design Benefit: +25% screening surface compared to flat screens
