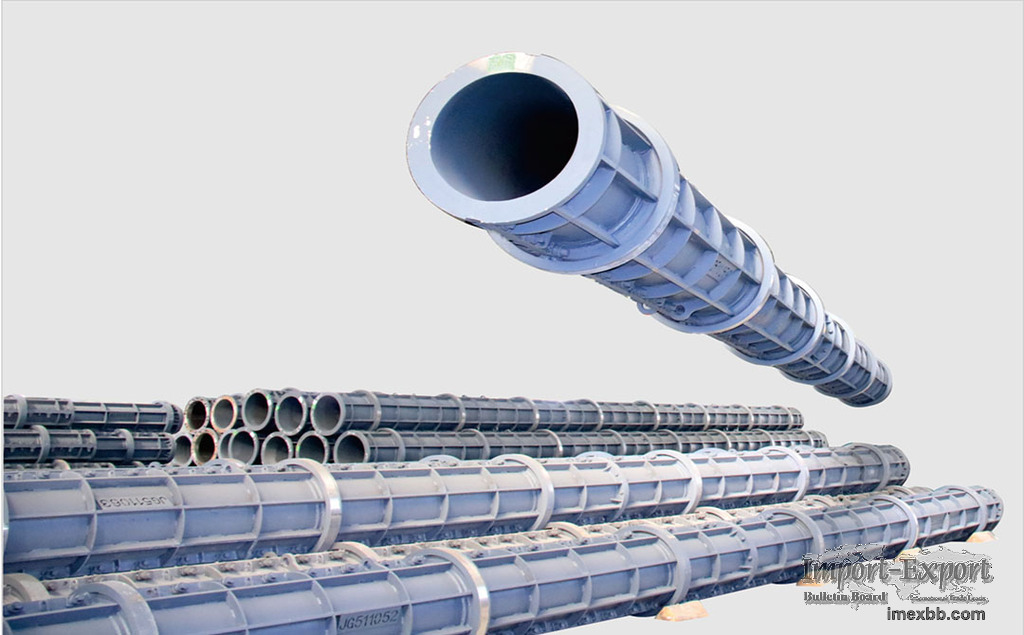

Steel Mold for Prefabricated Concrete Spun Pile Using Pre-Tension Method

Product function : The special steel mold used for the production of
prefabricated concrete spun pile using pre-tension method,which by centrifugal
process through running wheel, can produce diameter of 300-1200mm concrete spun
pile.

Product highlights
According to requirement of customers,can customize segmented steel mold or
integral steel mold. It has simple structure, sufficient strength and rigidity,
large tensile strength. Adopt thicker end plate and flange, makes the
connection is stable, tensile force is strong. The overall use of longitudinal
reinforcement, good stability, and the mold body is not easy to deform.
Integral lifting ring can ensure safety and reliability. Thicker running wheels
can extend service life.

Technical specification
(1)300*8.4、300*9.4、300*10.4
