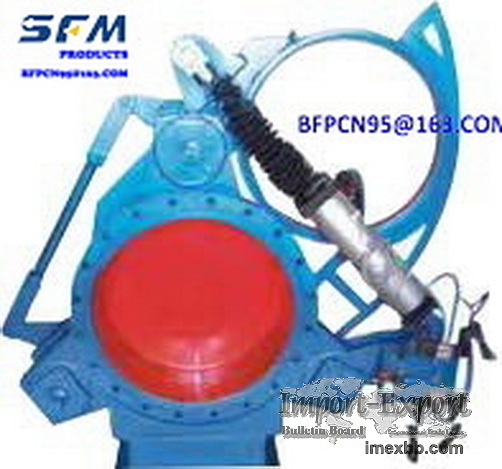

Swing type goggle valve

Pneumatic sector blind plate valve Pneumatic fan-shape blind plate valve
Pneumatic rotary type goggle valve Pneumatic swing type blind plate valve
Model: F643CX Size: DN300-DN1000 Applicable temperature:  120℃、200℃、
300℃
PN: 0.05-2.5Mpa，Applicable media: gas and toxic, harmful and flammable gases

Pneumatic sector blind plate valve has clamping, loosening cylinder and plate
cylinder. Clamping, loosening cylinder drives left valve body and right valve
body to achieve loosening, clamping action through lead lever pair and screw
pair and plate cylinder drives valve plate to complete switch action.
Pneumatic sector blind plate valve has rubber seal ring embedded on the valve
plate which enjoys features of high temperature resistance, good sealing
performance, convenient maintenance and long service life, etc.
The blind plate valve has many kinds of specifications, such as
electrohydraulic sector blind plate valve, electric sector blind plate valve,
manual sector blind plate valve and worm gear operated sector blind plate
valve, etc. The factory can produce as per the customer's request

Minimum Order: 1 pieces
