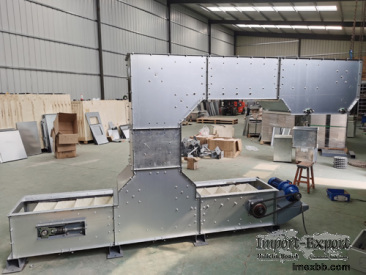

T-type elevator

The T-type pendulum bucket elevator conveyor is a bulk material handling system
built around a T-shaped path: one central vertical lifting section connects to
a bidirectional horizontal arm at the top, allowing a single machine to
simultaneously feed two or three downstream production lines, filling stations,
or silos from one drive unit. This T-shaped horizontal expansion design is the
defining feature that separates it from the C-type (single-direction horizontal
run) and Z-type (straight vertical-to-horizontal path) configurations.
Product Advantages
Multidirectional non-destructive conveying capability with single-machine
multi-line service: The T-shaped horizontal expansion design enables
simultaneous connection of 2-3 production lines, preventing material
fragmentation and damage during conveyance.
Diverse configurations: Z-type, C-type, T-type feeding systems, horizontal
distribution systems, etc.;
Single-point/multi-point feeding, single-point/multi-point discharging;
Leak-proof sealed hopper;
