T120H

Fever Screening Thermal Camera

T120H temperature screening thermal camera is a fast temperature detection
tool, which can be used to detect human temperature from a safety distance with
accuracy of ±0.5℃. It is an economical and practical thermal camera that
could meet the needs of primary temperature screening well. With two
intelligent temperature screening modes, GUIDE T120H is not only suitable for
flexible temperature screening, but also can be deployed at the entrances and
exits of the public area, which makes it an ideal device to improve the
efficiency of epidemic prevention and protect public health.

120x90IR resolution

25HZFrame Rate

50°x38°FOV

2.28mm F1.13Focal Length/F#

Product Manual

• Adopt the high sensitive WLP IR detector with independent intellectual
property rights

• Boot up in 1 second, fast temperature detection, automatic fever
identification and alarm

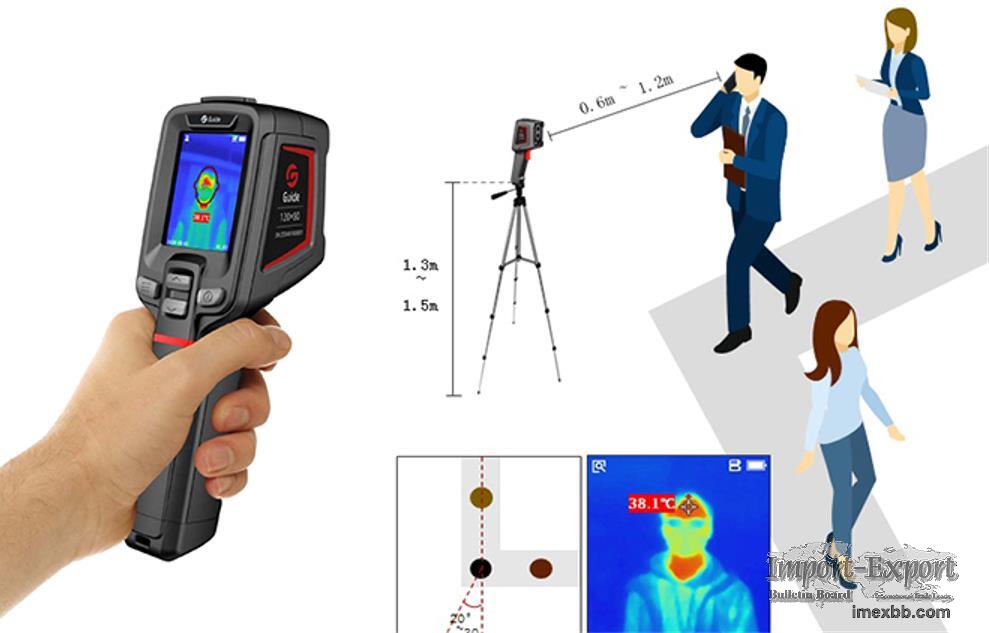

• 1-meter safe detection distance, low risk of infection, no disturb to
detected person

• Support to save up to 100,000 images, can check temperature data

• TYPE-C interface, 2.5H fast charge, battery time up to 8H.

• Compact and portable, suitable for mobile detection, also can be fixed by
optional tripod

Technical Parameters
Model
T120H
ADD TO COMPARE

Thermographic parameters
Detector type VOx
Detector resolution 120×90
Pixel size 17μm
Spectrum range 8μm to 14μm
NETD ＜60mK
Lense 2.8mm, 50°x38°
Image flip Available
Pseudo color Human body color bar

Temperature measurement parameters
Measurement range 20°C to 50°C
Measurement accuracy ≤±0.5°C
Target setting Center point
Full-screen point temperature measuring Available

Environmental parameters
Working temperature -10°C to +50°C

Physical parameters
Product size 194mm × 61.5mm × 76mm
Net weight About 350g
Standard A device, a wrist strap, a Quick Start Guide, a charger
connector + adapter, a Type-C USB cable, a flash memory disk, 16G TF Card
Options Tripod
* All specifications are subject to the actual product. Guide sensmart
reserves the right to change the technical specifications without notice or
liability to you.
