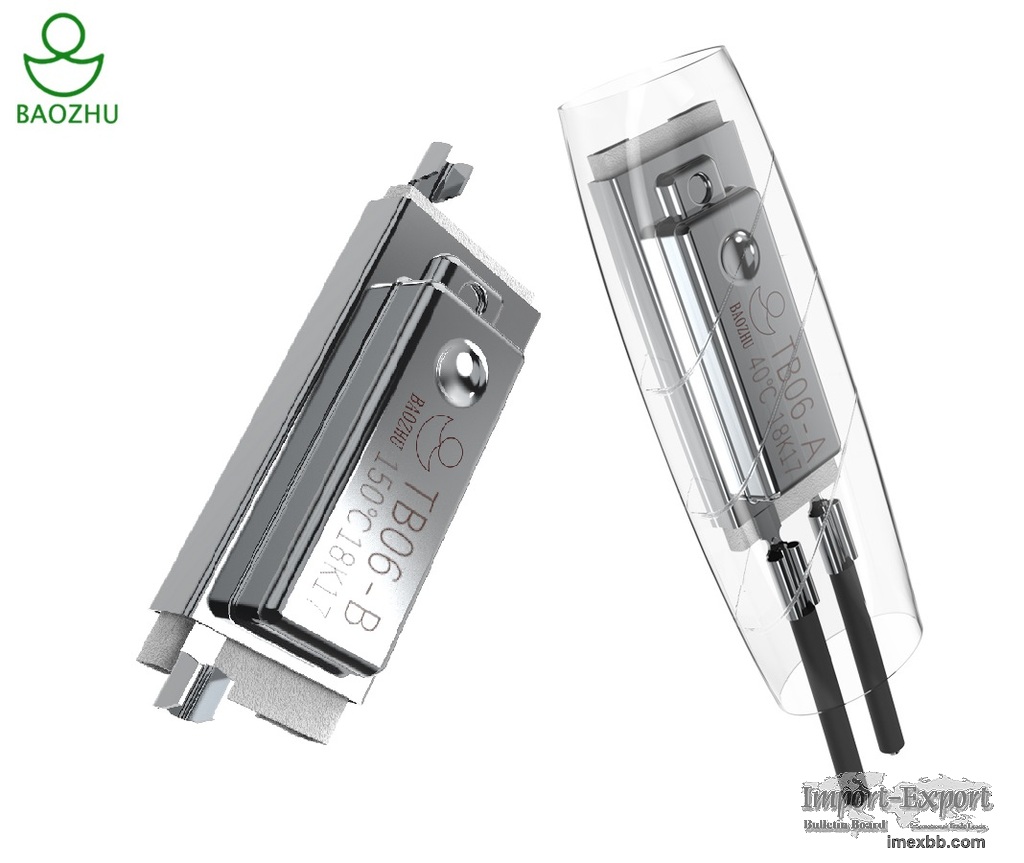

TB06 creep action type bimetallic thermostat replace for PEPI

TB06 series slow-jump thermostat. Steel bracket makes the performance more stable,
small return difference, no creep, high temperature control accuracy, temperature
sensitivity, long life, at the same time, with the same direction and opposite
direction terminals. It is widely used in electric heating fields such as electric
heating seat, electric heating blanket and medical heating pad.

Rated Current&Voltage AC250V/3A、 AC125V/5A、 DC24V/6A

Operating Temperature 5℃~200℃

Size TB06-A 24.2mm ( L ) *9.5mm ( W ) *4.5mm ( H )
TB06-B 26.9mm ( L ) *9.5mm ( W ) *4.5mm ( H )

Lead Wire UL3135 AWG18#、UL3321 AWG18#

Minimum Order: 100 pieces
