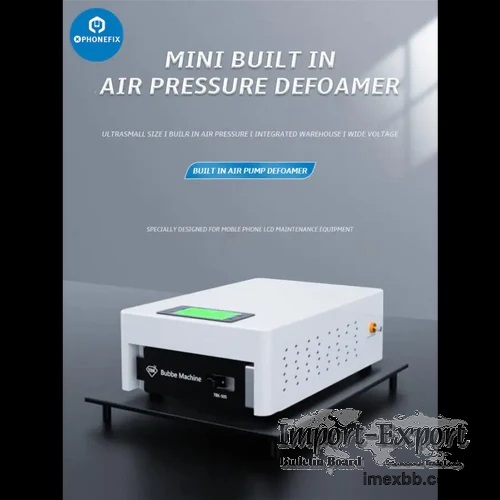

TBK-505 Mini Built-in Air Compressor OCA Bubble Remove Machine

TBK-505 Mini Built-in Air compressor Bubble Remove Machine For LCD Glass
Refurbish repair,TBK 505 mini Intelligent Defoamer, LCD Screen High
Pressure Defoamer, Built-in Air Compressor, OCA Bubble Remove Machine.

Features:
Ultrasmall size,Built-in Air Pressure,integrated warehouse,wide
voltage,Built-in Air pump defoamer.
Defoaming machine Integrated air compressor,Detoaming machine integrated
ail compressor,It can also work with an external air compressor.
Integrated fitting bin,Defoaming machine Built in vacuum,pump,Completely
sealed to prevent air leakage.
Specially designed for mobile phone LCD repair equipment.

Specification:
brand model :TBK 505
Voltage:110/220V
power :200w
Fit bin size:190*110mm
Product size :190*295*100mm
Package size : 280*360*180mm
weight：6kg

NOTE:
Latc , h upgrade,Selflocking pressure sensing switch.
If the door lock is not locked in place the automatic sensing will not
work.

Operatinginstructions:
1.Press and hold the ENT button,release the ENT when the temperature
display is flashing.
2. press+/-toadjust the temperature you need Defoaming
temperature(recommended defoamingtemperature45°) adiust the temperature.

3.PRESS ENT again to set For defoaming duration similarly.set
thedurationaccordingto+/-setting(3-10minis recommended).

4. then Put theLCDscreen tobe defoaminginto the fitting binclose the bin
doorand press ESC to start defoaming.

Minimum Order: 1 pieces
