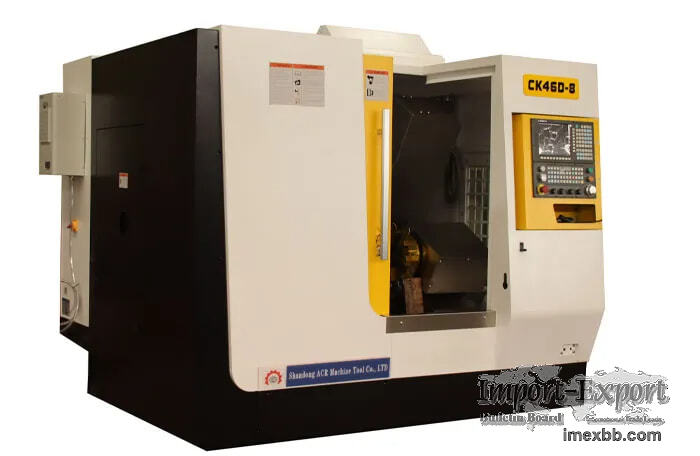

TCK 46D-8 CNC Turning and Milling Machine

This machine tool is an slant machine tool with high speed, high precision
and high reliability.The main components such as bed seat, bed body and
headstock are cast with high strength materials to ensure the long-
ter , m stability of the machine tool
ACR Machine Tool TCK46D-8 Specifications:
Swing Over the Bed: 450 mm
Swing Over the Slide: 130 mm
Turning Length: 450 mm
Spindle Speed: 4500 rpm (stepless)
Main Motor Power: 7.5 kW
Spindle Nose Specification: A2-5
Spindle Through Hole Diameter: 56 mm
Hydraulic Chuck Size / Optional Collet: 6 inches
Turret Type: 8-position electric turret
Living Tools Type: Nose4 + Side4
Living Tools Power: 1.3 kW
Living Tools Speed: 3000 rpm
Distance of Each Milling Head: 60 mm
Spindle (C Axis) Dividing Positioning Accuracy: 0.02"
X/Y/Z Axis Travel: 500 mm / 240 mm / 450 mm
X/Y/Z Axis Fast Moving Speed: 24 m/min / 15 m/min / 24 m/min
X/Y/Z Axis Positioning Accuracy: 0.006 mm
X/Y/Z Axis Repeat Positioning Accuracy: 0.003 mm
