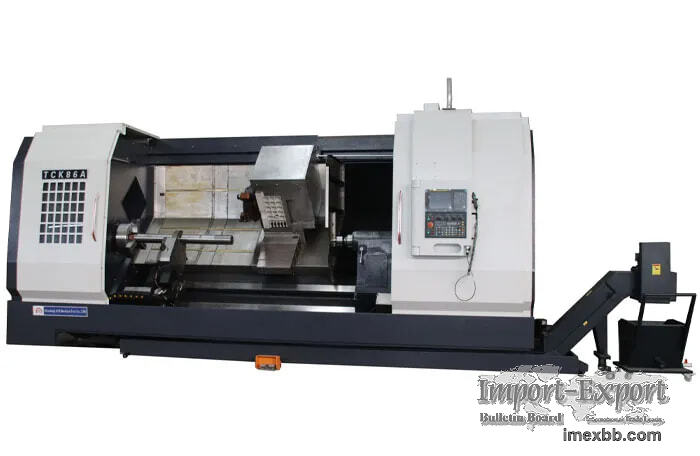

TCK 86A CNC Lathe Machine

This machine tool is an slant machine tool with high speed, high precision
and high reliability.The main components such as bed seat, bed body and
headstock are cast with high strength materials to ensure the long-
ter , m stability of the machine tool.
Adopting 45 degree integral inclined bed structure and high precision preloaded
Taiwan linear rolling guide, the machine has high positioning accuracy, fluent
chip discharge and is suitable for high speed and high precision machining.
ACR Machine Tool TCK86A Specifications:
Swing Over the Bed: 860 mm
Swing Over the Slide: 630 mm
Turning Length: 1000/1500/2000+ mm
Spindle Speed: 1500/800 rpm (stepless)
Main Motor Power: 18.5/22 kW
Spindle Nose Specification: A2-11
Spindle Through Hole Diameter: 104 mm (Optional 130 mm)
Chuck Size: 15 inches
Chuck Type: 12-position electric servo turret
Tailstock Type: Hard guide rail
Tailstock Travel: 1000/1500/2000+ mm
Tailstock Sleeve Travel: 150 mm
Tailstock Sleeve Diameter: 160 mm
Tailstock Sleeve Taper: MT6
Cylindrical Cutting Tool: 32x32 mm
Inner Circle Tool: Ф50/Ф40/Ф32/Ф25 mm
X/Z Axis Travel: 430 mm / 1150/1650/2150+ mm
X/Z Axis Fast Moving Speed: 12 m/min (X-axis) / 15 m/min (Z-axis)
X/Z Axis Rail Width: 55 mm / 65 mm
X/Z Axis Positioning Accuracy: 0.008 mm / 0.008 mm
X/Z Axis Repeat Positioning Accuracy: 0.004 mm / 0.004 mm
