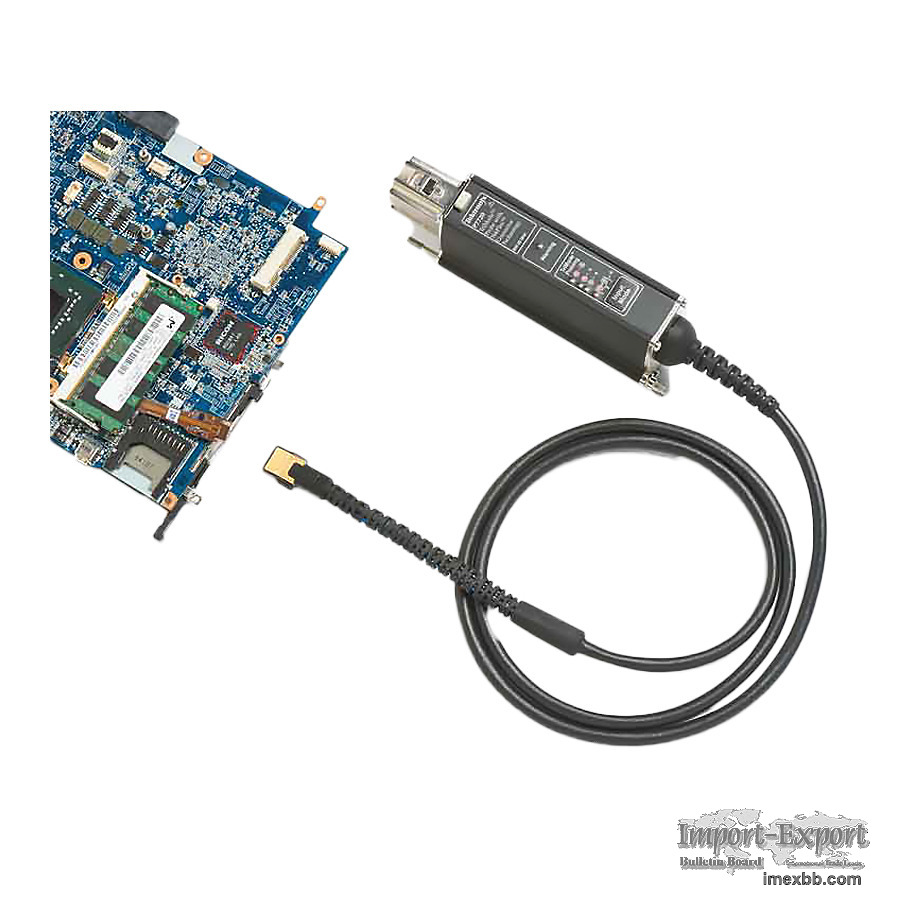

Tektronix P7508 TriMode Differential Probe

Features and Specifications: Tektronix P7508 TriMode Differential Probe, 8
GHz, TekConnect Interface, P7500 Series.

sell by UMIATI Calibration


Product Overview:

The Tektronix P7508 TriMode Differential Probe is a high-performance probe
designed for use with oscilloscopes. It offers exceptional bandwidth,
accuracy, and versatility, making it ideal for a wide range of
applications, including high-speed digital design, power integrity
analysis, and signal integrity testing.

Features:

TriMode Operation: Differential, single-ended, and common mode measurements
8 GHz Bandwidth: Captures high-frequency signals with precision
TekConnect Interface: Quick and easy connection to oscilloscopes
High Input Impedance: Minimizes loading effects on the circuit under test
Low Noise: Ensures accurate measurements even in noisy environments
Adjustable Attenuation: Allows for optimal signal viewing
Ground Reference Compensation: Eliminates ground loop errors
AutoProbe Interface: Automatic probe recognition and setup

Specifications:

Bandwidth: 8 GHz
Input Impedance: 1 MΩ 1 pF
Attenuation: 1x, 10x, 100x
Rise Time: 45 ps
Maximum Input Voltage: ±15 V
Probe Tip: Grounded
Probe Length: 1.5 m

What’s in the Box:

P7508 TriMode Differential Probe
Probe Tip Accessories
Ground Lead
User Manual

Minimum Order: 1 pieces
