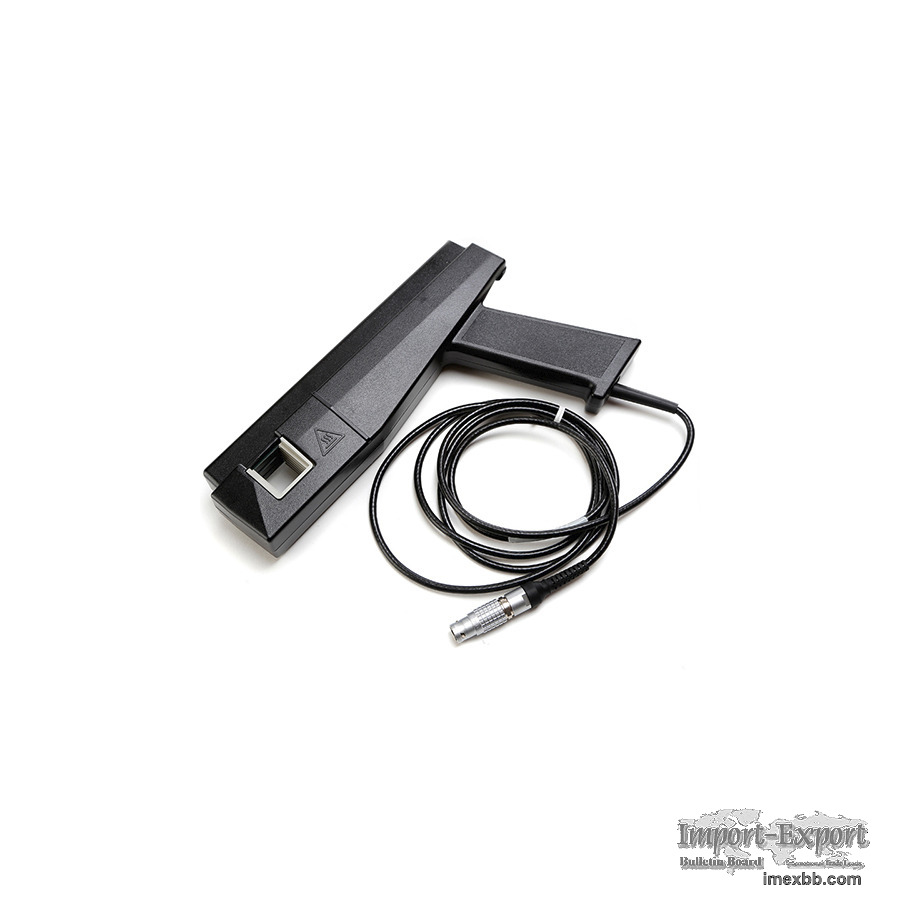

Tektronix TCP303 Current Probe: Precision Measurement for AC/DC Currents

Features and Specifications: Tektronix TCP303 Current Probe, AC/DC, 5 mA,
150 A, 15 MHz, 600 V, 25mm, 500 A, 2m, TCP300 Series

sell by UMIATI Calibration


Product Overview:

The Tektronix TCP303 Current Probe is a high-performance, AC/DC current
probe designed for use with oscilloscopes and other test equipment. It
offers a wide measurement range of 5 mA to 150 A, a high bandwidth of 15
MHz, and a maximum voltage rating of 600 V. The TCP303 is ideal for a
variety of applications, including power electronics, motor control, and
automotive testing.

Features:

AC/DC current measurement
Measurement range: 5 mA to 150 A
Bandwidth: 15 MHz
Maximum voltage rating: 600 V
Split-core design for easy installation
25mm jaw opening
2m cable length

Specifications:

Accuracy: ±1% of reading ±0.1 A
Sensitivity: 10 mV/A
Input impedance: 1 MΩ
Output impedance: 50 Ω
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 70°C

What’s in the Box:

Tektronix TCP303 Current Probe
User manual

Benefits:

High accuracy and wide measurement range
High bandwidth for capturing fast transients
Split-core design for easy installation
Compact size and lightweight for portability
Rugged construction for durability

Minimum Order: 1 pieces
