TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver Wireless Crane

PRODUCT DESCRIPTION
TELEcontrol F21-E1B wide voltage 65-440v transmitter and receiver wireless
radio remote control for crane industry and hoist

Application:


Wireless remote controls are widely applied for lifting equipment,
construction machinery, cargo loading/unloading machines, water supply
system, data transmission, theiron-smelting and steel-making, the automobile
manufacturing, paper-making and chemical industry, steel structure
processing, galvanization, shipbuilding, railroad, bridge, tunnel
construction and other equipment and sites which can be worked by radio
controls.
UTING is one of the global famous researcher, manufacturer and service
provider of wireless remote controls. It is with more than 20 years
researching and producing experience for industrial radio controls.
Wireless Remote Controls are used to operate equipment installed in a remote
location such as motorized valves, water pumps, motors, electric gates and
lighting.

TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver Wireless Crane
Remote 0

Features:

6 single Push buttons in 1 speed,1 EMS stop, 1 start button
Program the button function by computer interface(software and cable is
optional)
Glass-fiber PA for extra shock resistance.
Wide range voltage input: AC/DC24-48V/65-440V/DC12V
Operating distance up to 100 meters, extendable with extra antenna
High level Enclosure protection class IP 65
Temperature range – 40 ° C~ + 85° C
Transmitter with working power led indicator
Transmitter with housing for extra shock resistance and shoulder strap cord
Low cost for electronic chain, hoist/monorail
Standard AA alkaline batteries(not included)
Low power consumption transmitter. 2 AA batteries last up to 4 months
Over 4.3 billions unique ID code available
Hamming code
Enhanced watch-dog circuit
Microsoft Windows based software for easy customize configuration
Test certificate of every single product with FCC and CE certificate
Note:
An industrial wireless radio remote control system can consist of any number
of remote control transmitters and wireless relay receivers working
together. Multi channel units provide the flexibility for numerous functions
and user selectable network. Thanks for the strong production capacity and a
professional team of sophisticated engineers, it gave us the flexibility to
customize our systems to meet your needs directly. We carefully listen to
your application description and will specify the most cost-effective models
from our product line to suit the requirements. We can even add hardware to
provide a totally “turn-key” solution.

TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver Wireless Crane
Remote 1

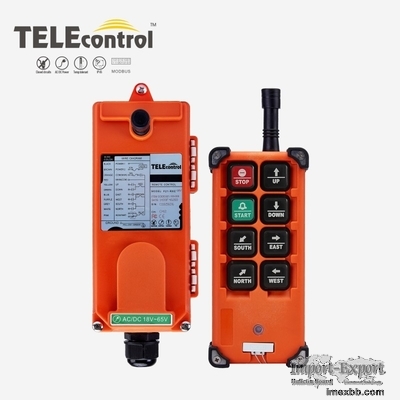

Radio remote control F21-E1B:
1TX+1RX( 6 single pushbuttons)



Technical Parameters:

Transmitter parameters:F21-E1B TX
Material Glass-Fiber PA
Enclosure protection class IP65
Frequency range UHF:425-446MHz
Receiver sensitivity -110dBm
Transmitter power supply 2 AA alkaline batteries(not included)
Safety Code 32 bits(4.3billion)
Temperature range -30℃~+85℃
Control distance up to 100 meters
Receiver parameters:F21-E1-RXC
Material Glass-fiber reinforced Nylon
Enclosure protection class IP65
Frequency range
UHF:425～446MHz

Transmitter power ≤10dBm
Receiver power supply AC65-440V
Output contactor capacity 250V/20A
Cable length 1.6m
Safety Code 32 bits(4.3billion)
Temperature range -30℃~+85℃
Control distance 30 to 50 meters

TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver Wireless Crane
Remote 2

TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver Wireless Crane
Remote 3TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver Wireless
Crane Remote 4TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver
Wireless Crane Remote 5TELE Control Telecrane F21-E1B 65-440v Transmitter
Receiver Wireless Crane Remote 6

We manufacturer the overload load limiter, limit switch safe equipment for
crane and other lifting devices and offer a wide range of portfolio expect
the industrial wireless radio remote controls, and A wide spectrum of
industries for lifting, positioning and materials handling applications and
a variety of options:



TELE Control Telecrane F21-E1B 65-440v Transmitter Receiver Wireless Crane
Remote 7



FAQ:
Q:Do you hav any requests for the MOQ?
A:Infact, there is no requests for the MOQ, and It is available to order
1set,and small order or trial order is welcome too, and there is only MOQ
for the customized items.



Q:How about your delivery time?
A:All the standard remote controls are ready for shipment from the
warehouse, it could be delivered immediately after the payment. For large
quantity or the customized radio wireless remote controls, please contact us
for specific lead time.



Q:How about payment?
A:It is usually paid by bank transfer(T/T in advance), if the amount is not
large, it is available to pay it by Paypal, Western union and so on.



Q:How about your industrial remote controls warranty?



A:the remote controls is warranted against defects in material and
manufacturing for a period of one year from the date of shipment. During
the warranty period, UTING is responsible for necessary repairs as
long as the product can be proven to be defective.

For warranty service or repair this product must be returned to the factory.
Buyer will pay shipping charges while UTING will pay return shipping
charges. This warranty does not include consumable parts such as batteries,
fuses, buttons, relays. Also this warranty does not cover defects caused by
improper installation, improper or insufficient maintenance, unauthorized
modification, improper operation, ignorance of environmental
specifications, or improper software or interfacing.
