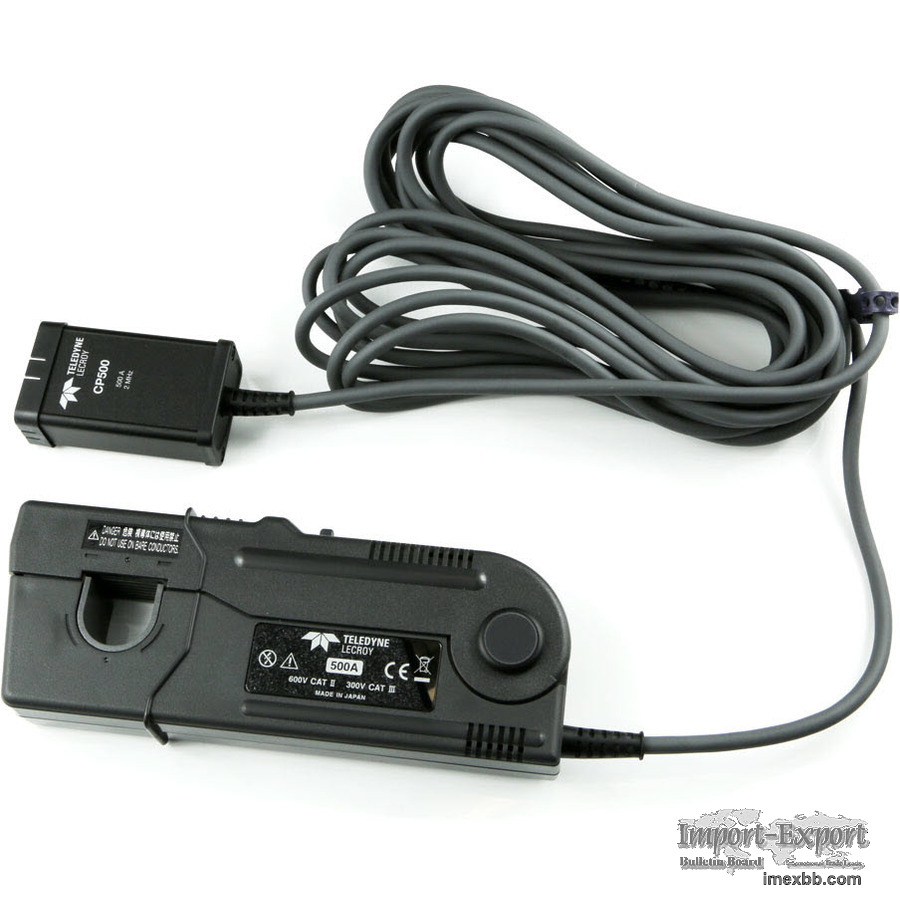

Teledyne LeCroy CP500 – Available at Matson Calibration

Teledyne LeCroy CP500: Precision Current Probe for AC/DC Measurements –
Available at Matson Calibration.

Product Overview:

The Teledyne LeCroy CP500 Current Probe is a high-performance, AC/DC
current probe designed for use with oscilloscopes and other test equipment.
It offers a wide measurement range of 100 mA to 500 A, with a bandwidth of
2 MHz and a maximum voltage rating of 600 V CAT2. The CP500 is ideal for a
variety of applications, including power electronics testing, motor control
analysis, and automotive diagnostics.

Features:

AC/DC current measurement
Measurement range: 100 mA to 500 A
Bandwidth: 2 MHz
Maximum voltage rating: 600 V CAT2
Split-core design for easy installation
Flexible 6m cable
BNC connector

Specifications:

Accuracy: ±1% of reading ±0.5 A
Sensitivity: 1 mV/A
Input impedance: 1 MΩ
Output impedance: 50 Ω
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 70°C
Dimensions: 150 mm x 75 mm x 35 mm
Weight: 350 g

What’s in the Box:

CP500 Current Probe
User manual

Benefits:

High accuracy and wide measurement range
Easy to use and install
Flexible cable for convenient use
* Durable construction for long-lasting performance

Minimum Order: 1 pieces
