The cheapest OEM and ODM flap barrier turnstile gate in China

Aneiz F10 flap turnstile-Support OEM and ODM. Support third-party biometric
devices, such as fingerprint scanner, face recognition camera. RFID card
reader, QR code scanner.

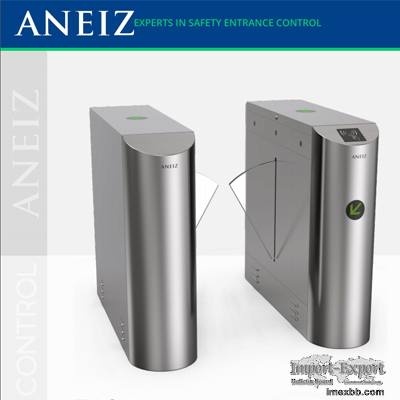

Aneiz F10 flap turnstile is a high performance pedestrian control
turnstile. Usually used in high pedestrian traffic flow in both directions
to control pedestrian entry or exit in restricted areas
304 Stainless steel material, durable, high quality, for long lasting use.
The F10 features designed with standard relay signal, which can integrate
easily to any kind of access control and fire systems through I/O (dry
contact).
In case of emergency, when power goes off both directions are free.
Passing Direction: Single directional / Bi-directional.

FEATURES
Aneiz F10 flap turnstile -The panels of the flap turnstile extend from a
pair of optical revolving door cabinets, forming a pedestrian barrier in
the middle of the two cabinets. Flap turnstile is an aesthetically pleasing
security and access control solution.
Aneiz F10 flap turnstile -The arms will automatically retract during power
failure. Flap turnstile also can be triggered to permanently open during
emergency to facilitate fast evacuation. This is complying with fire safety
requirements.
Aneiz F10 flap turnstile -Altogether, there are 5 million cycles, 304
Stainless steel material and brushless DC motor, which guarantee greater
durability and longer equipment life.
Aneiz F10 flap turnstile -The turnstile designed with consolidated and more
durable mechanism, will not break even someone collide it, anti-collision
and anti-kick function.
Aneiz F10 flap turnstile -The flaps will close automatically if there is no
pedestrian passing or passenger delay to entry.
IR sensors detect unauthorized or abnormal access. Alarm buzzer function
will be triggered when the user is passing thru without authorization, tail
gaiting, illegal intrusion or incorrect direction.
Aneiz F10 flap turnstile -Multiple Operating Modes-optional
IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein
biometric recognition, push button, ESD, wireless remote control, insert
coins / card / wristband, digit counter...


Aneiz F10 flap turnstile TECHINCAL SPECIFICATION

Material 304 Grade Stainless Steel
Cabinet Dimension 1200(L) X 300(W) X 980(H)mm
Arm Material Plexiglas-transparency
Passage Width 550mm standard lane
Throughput 40 to 45 people per minute
Response Time ≤0.3S
Net Weight 65kg/pcs single core
85kg/pcs double core
Directional Mode Uni-directional or bio-directional
IR Sensor 3 pairs (standard)
Power Supply AC220V/110V, 50/60Hz
Power Voltage 24V DC
Power Consumption 40W
MCBF 5 million
Operating Temperature -20 °C - 75 °C
Operating Environment Indoor or outdoor (need with shelter)
Relative Humidity ≤ 95%
LED Indicators Red cross means gate open,
Green arrow means gate closed
Warranty 18 Months

Minimum Order: 1 sets
