The cheapest OEM and ODM FULL HEIGHT TURNSTILE in China

Aneiz FHT10 full height turnstile-Support OEM and ODM. Support third-party
biometric devices, such as fingerprint scanner, face recognition camera.
RFID card reader, QR code scanner.

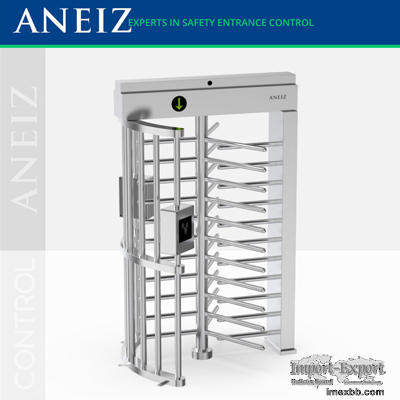

Aneiz FHT10 full height turnstile- is a high performance pedestrian control
turnstile. Usually used in high pedestrian traffic flow in both directions
to control pedestrian entry or exit in restricted areas
304 Stainless steel material, durable, high quality, for long lasting use.
The Aneiz FHT10 full height turnstile- features designed with standard
relay signal, which can integrate easily to any kind of access control and
fire systems through I/O (dry contact).
In case of emergency, when power goes off both directions are free.
Passing Direction: Single directional / Bi-directional.

FEATURES
Aneiz FHT10 full height turnstile - is not able to crawl underneath and
climb over to gain unauthorized access. Besides, the gate adopts high
quality 304/306 stainless steel to replace ordinary steel.
Aneiz FHT10 full height turnstile - Arm rotor will automatically release
for free passage during power failure. This is complying with fire safety
requirements.
Aneiz FHT10 full height turnstile - Solid body is used 304 SS material,
making the gate adapt to serve environment especially suffer rainstorm or
under blazing sun when installed at outdoor.
Aneiz FHT10 full height turnstile -The turnstile designed with consolidated
and more durable mechanism, will not break even someone collide it, anti-
collision and anti-kick function.
Aneiz FHT10 full height turnstile - The transverse bars joint at the middle
of both sides, making the whole frame more solid and stable.
IR sensors detect unauthorized or abnormal access. Alarm buzzer function
will be triggered when the user is passing thru without authorization, tail
gaiting, illegal intrusion or incorrect direction.
Aneiz FHT10 full height turnstile -Multiple Operating Modes-optional
IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein
biometric recognition, push button, ESD, wireless remote control, insert
coins / card / wristband, digit counter...


Aneiz FHT10 full height turnstile TECHINCAL SPECIFICATION

Material 304 Grade Stainless Steel
Dimension 1460(L) X 1250(W) X 2180(H)mm
Arm Rotor 3 sections (120° rotor)
Passage Width 640mm
Throughput 35 to 40 people per minute
Response Time ≤0.3S
Net Weight 150kg/pcs
Directional Mode Uni-directional or bio-directional
Power Supply AC220V/110V, 50/60Hz
Power Voltage 24V DC
Power Consumption 40W
MCBF 5 million
Operating Temperature -15 °C - 60 °C
Operating Environment Indoor or outdoor
Relative Humidity ≤ 95%
LED Indicators Red cross means gate open,
Green arrow means gate closed
Warranty 18 Months

Minimum Order: 1 sets
