The cheapest OEM and ODM Tripod Turnstile in China

Aneiz T10 Tripod turnstile-Support OEM and ODM. Support third-party
biometric devices, such as fingerprint scanner, face recognition camera.
RFID card reader, QR code scanner.

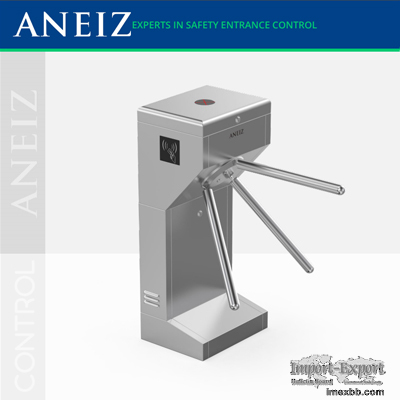

Aneiz T10 Tripod turnstile is a high performance pedestrian control
turnstile. Usually used in high pedestrian traffic flow in both directions
to control pedestrian entry or exit in restricted areas
304 Stainless steel material, durable, high quality, for long lasting use.
The T10 features designed with standard relay signal, which can integrate
easily to any kind of access control and fire systems through I/O (dry
contact).
In case of emergency, when power goes off both directions are free.
Passing Direction: Single directional / Bi-directional.

FEATURES
Aneiz T10 Tripod turnstile -Compatible with any access control systems.
Aneiz T10 Tripod turnstile -304 Stainless steel material, durable, high
quality, for long lasting use.
Aneiz T10 Tripod turnstile - Reset automatically: the gate arm will lock if
not passing at preset time (5 seconds), the time can be adjusted by
software.
Aneiz T10 Tripod turnstile - Rapid throughput, 35 to 40 people per minute.
Aneiz T10 Tripod turnstile - Passing direction: single directional / bi-
directional, both the two directions can be switched or set as free mode.
LED indicator on the top displays the status of passing.
Aneiz T10 Tripod turnstile -Multiple Operating Modes-optional
IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein
biometric recognition, push button, ESD, wireless remote control, insert
coins / card / wristband, digit counter...


Aneiz T10 Tripod turnstile TECHINCAL SPECIFICATION

Material 304 Grade Stainless Steel
Dimension 330(L) X 420(W) X 990(H)mm
Arm Length 500mm
Passage Width 550mm standard lane

Throughput 35 to 40 people per minute
Response Time ≤0.3S
Net Weight 35Kg/pcs
Directional Mode Uni-directional or bio-directional
Emergency Function Arm release automatically for
Emergency access
Power Supply AC220V/110V, 50/60Hz
Power Voltage 24V DC
Power Consumption 20W
MCBF 5 Million
Operating Temperature -20 °C - 75 °C
Operating Environment Indoor or outdoor use
Relative Humidity ≤ 90%
LED Indicators Red cross means gate open,
Green arrow means gate closed
Warranty: 18 Months

Minimum Order: 1 sets
