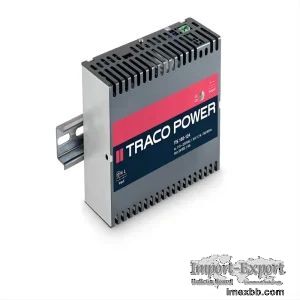

The Switching Power Supplies of The TIS Series

With the UDS module the Traco Power supplier can be extended to a perfect DC-
UPS with automatic battery- backup. This function is very often required in
applications where a time delayed shutdown of a system is necessary. To
monitor and control the power supply a signal module can be installed. For
parallel operation with active power sharing a redundancy option is
available. This flexibility makes the TIS series power supplies a cost
effective solution for many industrial applications.

SPECIFICATIONS
Output Voltage：24 VDC
Output Adjustment 1：24-28 VDC
Output Current：6000 mA
Power Rating：150 W
Number of Output：single
Input Voltage：93-132 and 187-264 VAC
Housing Type：Metal Case
Mounting Type：DIN-Rail Mount
Connection Type：Screw Terminal
Length：157 mm
Width：56.7 mm
Depth：114.6 mm
Efficiency：85 %
Maximum Temperature：70 °C
Minimum Temperature：-25 °C
Weight：800 g
Ripple and Noise：50 mVp-p max.
Remote On/Off：No
Safety Approvals：EN 60950-1, EN 62368-1, UL 508
Insulation System：Reinforced Insulation
I/O Isolation Voltage：3000 VDC
