Three Phase Portable Induction Heating Generator For Preheat , Pwht , Annea

Three Phase Portable Induction Heating Generator For Preheat , Pwht ,
Annealing , Pipe Coating





Application:

Transmission pipeline
Pipe fabrication shops
Power Piping
Petrochemical
Shipbuilding
Mining equipment maintenance
Drill Pipe manufacturing
Shrink fit


Advantage:

Versatible mobility
On-board temperature control
Multiple thermocouple inputs control
Open-circuit output control
Short-circuit output control
Low costs
Uniform heating
Time-temperature
Improve working environment
More than 90% engergy transfer efficiency
Easy to install and operation
Specification:



Input Output Inductance Range Dimension Weight
Voltage:

Three -phase 380V~460V



Frequency: 50~60Hz



Ampere: 6.3-7.6A

Power:

4.5kW (Duty Cycle 100%)



Frequency: 3~35kHz



2.2~300 μH



H: 263mm

W: 302mm

D: 535mm



18.6kg




Accessory List:

NO. accessaries specification unit quantity picture
remarks

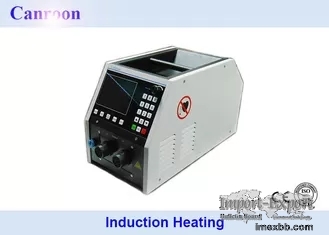

1 Induction Heating Power Source 5KVA set 1 1 Phase
Portable Induction Heating Machine , Pipe Plate Preheating Induction Heat
Treating Equipment necessary
2 Air-cooled Induction Cable 5M, 8M, 10M (TEMP. Resistance 400℃)
piece 1 1 Phase Portable Induction Heating Machine , Pipe Plate
Preheating Induction Heat Treating Equipment necessary (length optional)
3 Thermocouple 2M, 4M, 6M, 8M (0~1300℃) piece 2 1
Phase Portable Induction Heating Machine , Pipe Plate Preheating Induction
Heat Treating Equipment necessary (length optional)
4 Remote Switchgear (remote control distance: 10M) piece 1
1 Phase Portable Induction Heating Machine , Pipe Plate Preheating
Induction Heat Treating Equipment optional
5 Thermocouple Welding Machine CR100-000-AA1 (rechargeable) set
1 1 Phase Portable Induction Heating Machine , Pipe Plate Preheating
Induction Heat Treating Equipment optional
6 Digital Recorder CR110-000-BB1 (6 routes) set 1
1 Phase Portable Induction Heating Machine , Pipe Plate Preheating
Induction Heat Treating Equipment optional
