Three Phase WiFi Energy Meter

Three Phase WiFi Energy Meter 3 phase electricity monitor

Overview
WEM3080T is a Din rail, there phase Wi-Fi Energy Meter/Wi-Fi Electricity
Monitor. It can be easily installed and fit neatly inside your electricity
panel, and provides insight into your energy consumption and analysis through
our dedicated Online 3 Phase Energy Monitoring System
(https://www.iammeter.com/) and Android/IOS app. With our cloud service, you
can easily understand your electricity bill and get timely alert when the total
energy consumption in a month reaches a preset value.

It is highly-integrated power meter with Wi-Fi module embedded, which can
measure the data of specific electricity equipment, such as AC voltage and
current of each phase, active power, total energy, and report them to the cloud
every 5 minutes. You can directly get access to the its internal web server and
easily set the Wi-Fi network configuration by one-key setup. With open data
interface (Http get interface and Tcp Interface), the measurement data can be
very flexible to stored locally or upload to your own server.
Describe Data Sheet
Key Features
Real-time energy monitoring and report to cloud every minute via Wi-Fi network
Simply one-key Wi-Fi setup to connect to your Wi-Fi network
Enterprise-class performance, suitable for domestic, commercial, industrial use
and solar system
Monitor the entire energy flow, the energy exported to/imported from grid vs
solar production of your solar system
Cloud service and Mobile app is available
Open API for perfect integration to the server/cloud of your own or the third
party (Home Assistant, openHAB, etc.)
2-pole DIN-rail mounting fits neatly in the meter box
Hardware Introduction
3 Phase Energy Meter WiFi Energy Meter

Standard Inclusion

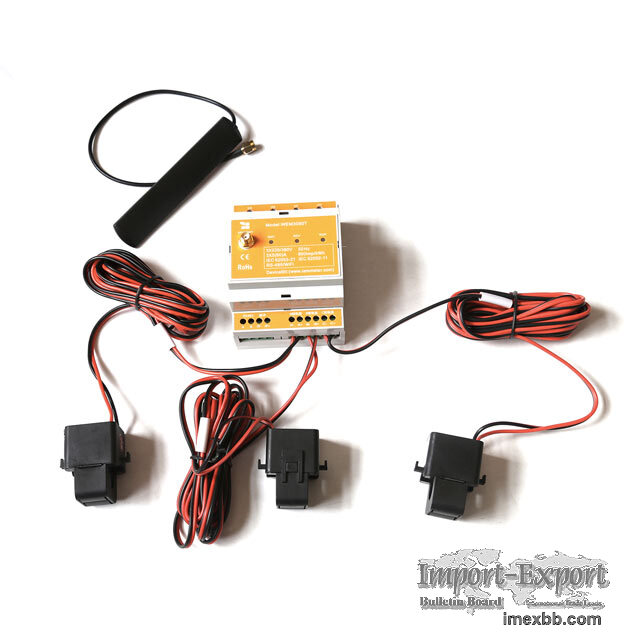

No. Item Qty Note
1 Wi-Fi Energy Meter 1 WiFi module embedded
2 Split-Core CT (Current Transformer) 1 150A or 250A Optional
3 2.4G Antenna 1 External Panel Antenna

Dimension of Wi-Fi Energy Meter

Dimension of Wi-Fi Energy Meter


One-Key Wi-Fi Setup
One-Key Wi-Fi Setup

Use your smart device's Wi-Fi connection setup, connect to the iMeter's network
and few steps to finish the Wi-Fi setting configuration.
Monitor by Iammeter Platform
Iammete platform: https://www.iammeter.com, is our IoT platform dedicated for
energy consumption and energy data monitoring. By connecting iMeter to it, you
can easily view the real-time and historical data and receive the timely alert
notification.

Monitor by Iammeter Platform
Mobile App
Mobile App
Monitor Locally via LAN
You can connect your iMeter-WiFi via LAN to your PC that running local
monitoring software. No cloud service required, and no internet needed for you
to save your cost.

Monitor Locally via LAN
Certifications

Certifications Certifications
