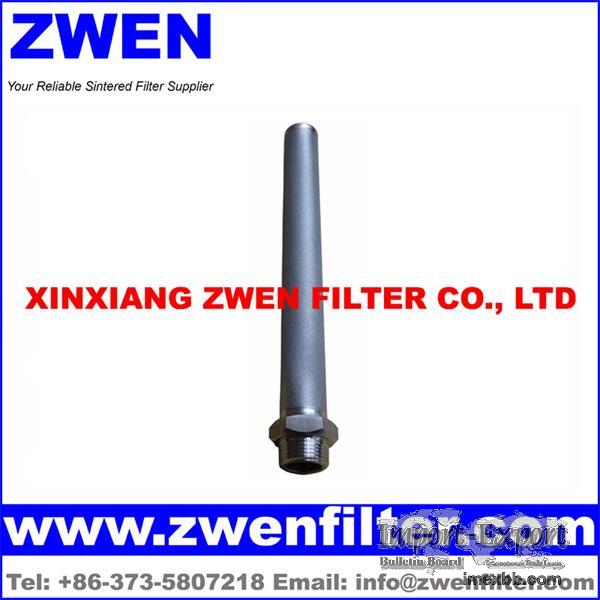

Titanium Sintered Powder Filter Element

Titanium Sintered Powder Filter Element Technical Data
Raw Material: Titanium
Filter Rating Range: 0.22 Micron ~ 100 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 300 ℃
Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,
60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm
Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor:
1. DOE
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
7. Flange
8. Special customization

Titanium Sintered Powder Filter Element Feature
1. Titanium sintered powder filter element is biocompatible
2. Titanium sintered powder filter element has high porosity
3. Titanium sintered powder filter element is good for backwash
4. Titanium sintered powder filter element has high mechanical strength
5. High filter efficiency
6. High dirt holding capacity
7. High temperature resistance
8. High corrosion resistance
9. Long service life

Application
1. Steam filtration (aseptic package, breweries, chemicals, dairies,
electronics, food and beverage, pharmaceuticals, plastic)
2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon
dioxide, compressed air, tank ventilation)
3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and
seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents,
water)
4. Catalysts powders recovery
5. Precoat support filtration

Minimum Order: 1 pieces
