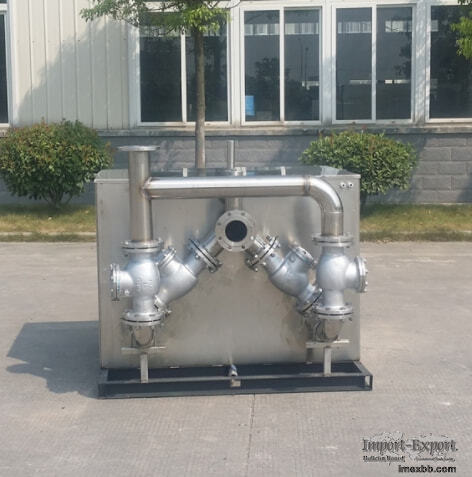

TJWT4 Toilet sewage lifting equipment

"Integrated equipment for sewage lifting of underground toilets" is an
intelligent product independently developed by Tianjian Company . In terms of
design thinking, the traditional lifting method has been changed, combining the
concepts of "solid-liquid separation", "backwashing", "integration" and
"intelligence" to design a series of intelligent sewage lifting equipment.

Applicable field:
Subway, large shopping mall and plaza where the instantaneous flow of basement
toilets are particularly big.

Processing flow chart
Working principle:
1. Where does the water come from? Where did it go ?
The "TJWT4 series integrated sewage lifting equipment" is an intelligent
product independently developed by Tianjian Company for the sewage lifting of
underground toilets. The equipment only needs to be connected to the water
inlet and outlet pipe and it can operate stably after powering on. convenient!

2. How to avoid the pump burned out?
The "TJWT4 series of integrated sewage lifting equipment" has changed the
traditional lifting method in design thinking. It uses Tianjian's "solid-liquid
separation" technology to completely separate the impurities from the sewage,
making it difficult for the impeller to touch its killer: winding objects, hard
objects, to ensure the normal use of the pump , to avoid abnormal damage to the
pump.

3. How to discharge the debris in the tank?
When the pump is started, the debris in the solid-liquid separation device is
automatically discharged to the outdoor septic tank; at the same time , a high-
pressure water flow starts to wash the bottom of the water tank, so that
possible fine sludge and water in the sewage are stirred Evenly, it is lifted
to the outdoor septic tank with the flow of water, without manual cleaning;

4. How to avoid overflowing odor?
We all had the experience that the toilet at home could not be flushed in time
when the water was cut off: when we waited to flush again the next day, we
found that the toilet smelled bad because the feces were fermented. Therefore,
the "TJWT4 series of integrated sewage lifting equipment" considered at the
beginning of the design that the volume of the water tank should not be too
large, and then the stainless steel linkage type liquid level gauge was
controlled to discharge sewage and dirt in time to avoid long-term
fermentation. Coupled with sealing rubber pads and ventilation measures, the
equipment works without peculiar smell.

5. How to control the work of the equipment?
"TJWT4 series integrated sewage lifting equipment" adopts intelligent control
mode to automatically run: when the water level reaches a high level, the water
pump starts to drain, and when it reaches a low level, the pump stops; when the
next start water level is reached, another water pump starts to drain. The two
water pumps are switched alternately and stand by each other, which is safe and
reliable.
