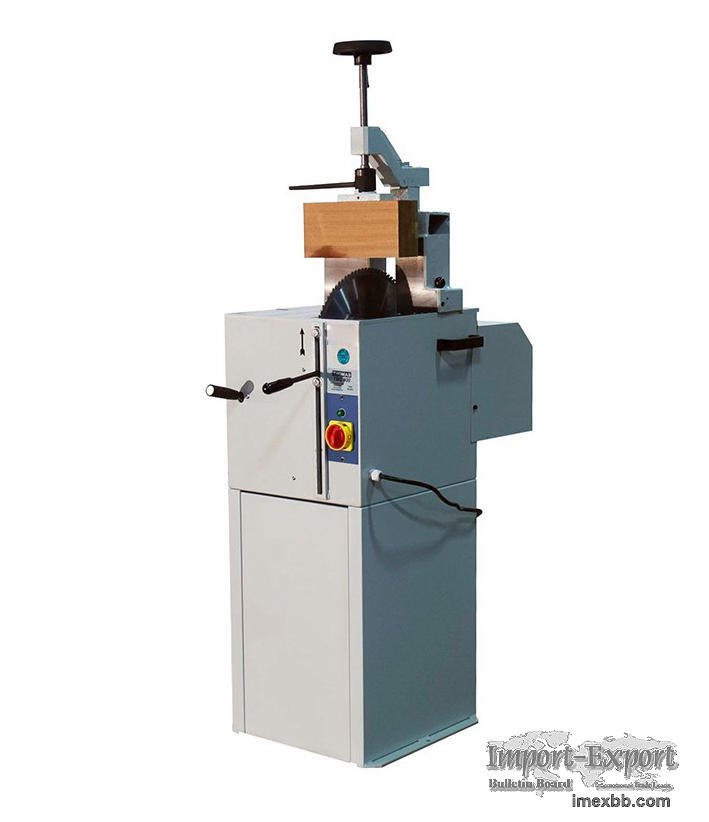

TMS 400 Circular Saw for Aluminum Cutting

TMS 400 Circular Saw for Aluminum Cutting
Product Overview:
The TMS 400 is a robust and precision-engineered circular saw designed
specifically for cutting aluminum. It also handles copper, brass, acrylic,
composites, PVC, and other ferrous materials with ease. Featuring dual miter
cutting capability (0° to 45°), this machine combines reliability and
simplicity for easy maintenance and long-lasting performance.

Technical Data

Specification Details
1Ph Electric Motor kW 1Ph, 1.45–2.0 kW
Voltage / Frequency V/H 1Ph 230V/50Hz, 220V/60Hz
Diameter of Blade Disc mm 400 mm
Blade Shaft Revolution rpm 3000 rpm
Weight kg 90 kg
Weight with Pedestal kg 105 kg
Cutting Capacity

Angle Circular(mm) Square(mm) Rectangular(mm)
0° 135 125 × 125 220 × 65
45° 130 115 × 115 170 × 60
Technical Features

Cast-iron vice and cutting head for high stability and vibration-free cutting
Motor guard for enhanced safety
Parallel cutting device
Quick-lock vice for fast and secure clamping
Rigorous mechanical tolerance, electrical installation, and performance tests
ensure top quality
Optional Equipment

Carbide blade disc, 400 mm
Standard Equipment

Instruction manual
Set of service spanners
Steel plate pedestal (included)
Applications:
Perfect for metalworking shops, fabrication workshops, and manufacturers
requiring precise and efficient cutting of aluminum and other non-ferrous or
ferrous materials.

Contact us:
Amy Li
Sales manager
Phone:86-15153106820
E-mail:amyli@go , odstargroup.com
Wechat:86-15153106820
Whatsa , pp:86-15153106820

Minimum Order: 200 pieces
