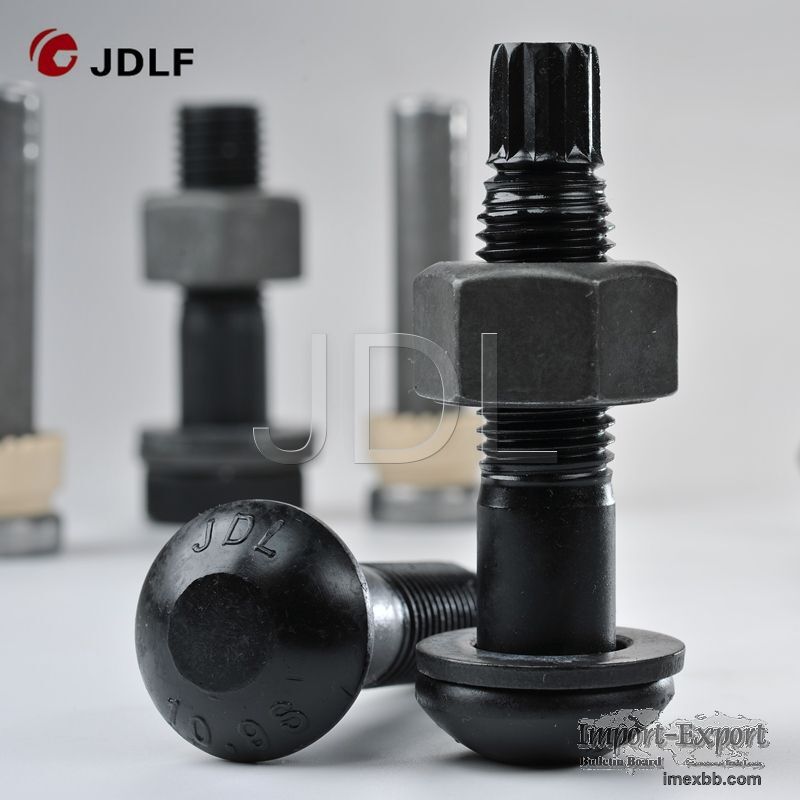

Torsional Shear Bolt

Torque-shear bolt is also well known for torsional shear bolt, is a
specialized high-strength fastener designed for critical structural
connections. Its external feature is that the bolt head is cup head, and at the
end of the rod, there is a plum blossom-shaped "breaking groove" (i.e., the
torque control section), which is used in conjunction with the matching torque-
shear type nuts and washers.
Specification
Standard GB3632
JSS II 09
Size
Diameter (length) M16(40-150) M20(45-180) M22(50-200) M24(50-
200) M27(65-200) M30(80-200)
Material 20MnTiB 35VB
nut  material-size 35K-Diameter24 35K-Diameter28/30 35K-Diameter34
35K-Diameter34/36 45#-Diameter38 45#-Diameter42
washer  material-size 45#-Thickness3.55 45#-Thickness3.55 45#-
Thickness4.55/4.6 45#-Thickness4.55/4.6 45#-Thickness4.55/4.6 45#-
Thickness4.55/4.6
Surface treatment black oxide
Grade 10.9
Production process Raw materials entering the factory - drawing - cold
heading  -Heat treatment- inspection - packaging
Package 30kg/ctn
Remarks The tensile strength is more than 1000mpa
