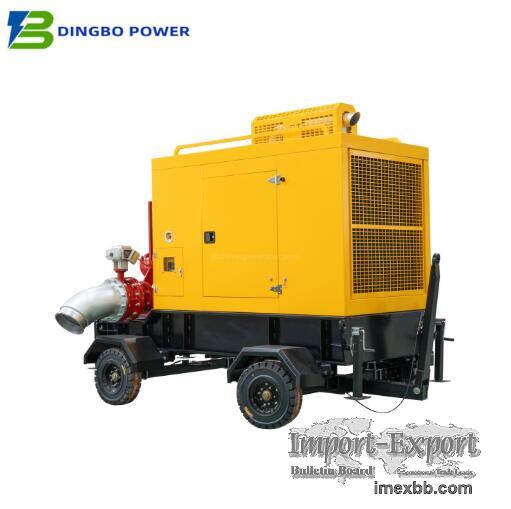

Trailer-mounted Double Suction Horizontal Split Case Pump

Our horizontal split double suction pumps adopt a horizontally split
symmetric double-suction structure with bearings positioned at both ends. The
pumps employ a centrifugal double-suction impeller with symmetric design,
ensuring inherently balanced axial forces. The double-suction split-case
pumps are equipped with a vacuum-assisted priming system, comprising
a vacuum priming unit, vacuum pump, and accessories, where the vacuum pump
is driven by the main diesel engine.
Advantage of Trailer-mounted Double Suction Horizontal Split Case Pumps for
Irrigation and Drainage
Structural Advantages:
Compact structure, aesthetic appearance, excellent stability, and easy
installation.
Optimized Impeller Design:
Axial force minimization through aerodynamically optimized impeller geometry.
Superior hydraulic efficiency with ultra-smooth surfaces on the pump casing
and impeller, achieved via precision casting technology.
Exceptional cavitation resistance and high efficiency (up to ISO 5199
standards).
Sealing & Reliability:
Mechanical seals or packing seals for shaft sealing, ensuring leak-free
operation for up to 8,000 hours.
Premium Bearings:
SKF and NSK bearings guarantee smooth operation, low noise levels, and
extended service life (exceeding 20,000 hours under rated conditions).
