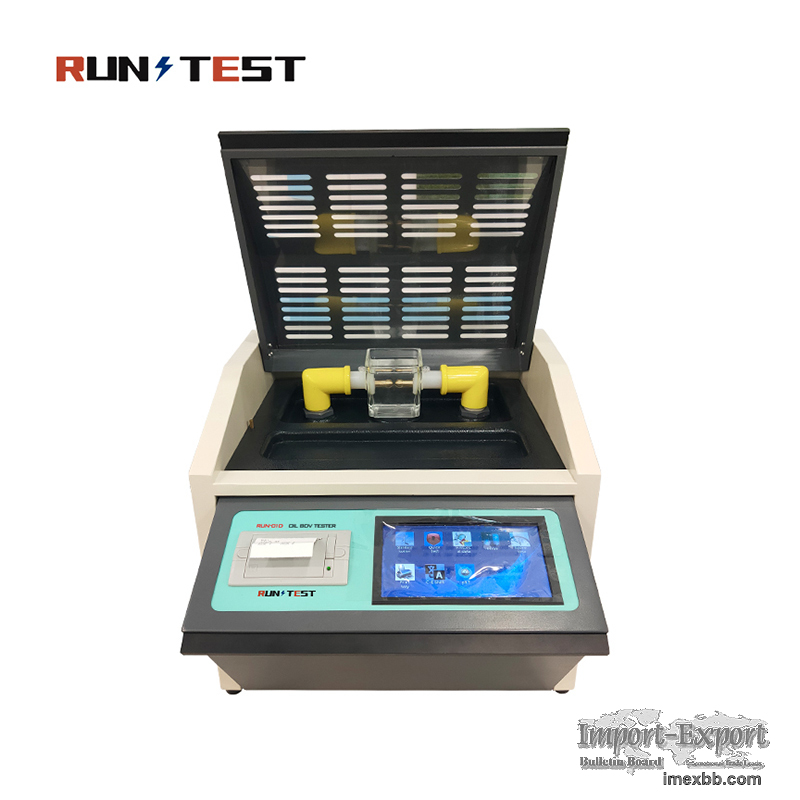

Transformer Insulation Oil Dielectric Strength Test Kit

Item: RUN-BDV80D
This model of dielectric strength tester for insulating oil uses of automatic
digital microcomputer control, so the measurement accuracy is high, anti-
interference ability is strong, safe and reliable.
Easy to operate and beautiful in shape
Output voltage: 0～80KV (100KV optional)
Quality control and one year warranty
0-80KV Automatic Transformer Oil Dielectric Strength Insulating Oil Breakdown
Voltage Bdv Tester
Specification of this Bdv Oil Tester
1.Booster capacity 1.5 KVA
2.Step up speed 0.5kv/s-5.0kv/s (increasing every 0.5) 10 gears optional Error
0.2kv/s
3.Output voltage 0-80 kV (optional)
4.Voltage accuracy (2% reading + 2 words)
5.Power distortion rate < 1%
6.Electrode gap standard 2.5mm
7.Test times 6 times (1-9 times optional)
8.Static release time 900s (0-9000 s optional)
9.Interval rest time 300s (0-900s optional)
10.Mixing time 15s (0-250s optional)
11.Overall dimension: 650mm × 470mm × 410mm
12.Instrument weight 42 kg
13.Ambient temperature 0-40 ℃
14.Relative humidity ≤ 85%
15.Working power AC 220V (1 ± 10%)
16.Power frequency 50 Hz (1 ± 10%)
17.Power consumption < 200 W
Features about the Automatic Oil Dielectric Strength Test Kit
1.The Transformer Oil Testing instrument is controlled by a large capacity
single chip microcomputer, which is stable and reliable;
2.The instrument is equipped with temperature, humidity and clock display
functions, and can be customized for infrared oil temperature measurement.
3.The wide range watchdog circuit is set in the instrument to prevent the
crash;
4.A variety of standard options. The instrument program is equipped with GB /
t507-1986, GB / t507-2002, dl429.9, iec156 and self programming operation,
which can adapt to a variety of choices of different users;
5.The oil cup of the instrument is made of special glass and high polymer
materials, which are processed finely to prevent oil leakage and corrosion;
6.The unique high-voltage sampling design of the instrument allows the test
value to enter the A / D converter directly, avoids the error caused in the
analog circuit, and makes the measurement result more accurate;
7.The instrument has over-current, over-voltage, short-circuit and other
protection functions, and has strong anti-interference ability and good
electromagnetic compatibility;
8.Can switch between Chinese and English at will to meet the needs of any
customer;
9.The instrument itself has data analysis function to assist the staff to
determine the oil quality;
USB and RS232 data transmission（Selective configuration）
RUN-TEST electric company has the most professional technicians to answer your
questions about the Transformer test equipment.

Minimum Order: 1 sets
