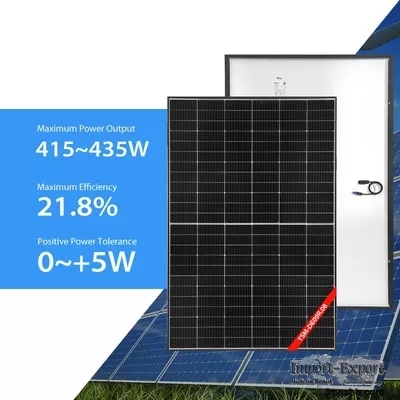

Trina Solar Photovoltaic Modules Mono Facial Solar Panel 415w 420w 425w 430

Product Description
Trina Solar Mono-Facial 415w 420w 425w 430w 435w High Quality Solar Pv
Panels With TUV
Double-glass solar panels also incorporate safety features such as built-in
bypass diodes, which help prevent damage due to hot spots or shading on
individual cells. Bypass diodes allow electrical current to flow around
shaded or damaged cells, ensuring that the panel continues to generate
electricity even if a portion of it is affected by shading or cell damage.

Model No. 415 420 425 430 435
Warranty
Product Warranty 15 Years
Power Warranty 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax) 415 Wp 420 Wp 425 Wp 430 Wp 435 Wp
Voltage at Maximum Power (Vmpp) 41.7 V 42 V 42.2 V 42.3 V 42.5 V
Current at Maximum Power (Impp) 9.94 A 10.01 A 10.08 A 10.17 A 10.24 A
Open Circuit Voltage (Voc) 50 V 50.1 V 50.2 V 50.3 V 50.4 V
Short Circuit Current (Isc) 10.55 A 10.58 A 10.61 A 10.64 A 10.67 A
Panel Efficiency 20.80% 21% 21.30% 21.50% 21.80%
Power Tolerance (Positive) 1% 1% 1% 1% 1%
Standard Test Conditions (STC): air mass AM 1.5, irradiance
1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax) 312 Wp 317 Wp 321 Wp 325 Wp 329 Wp
Voltage at Maximum Power (Vmpp) 38.7 V 39.2 V 39.5 V 39.7 V 40 V
Current at Maximum Power (Impp) 8.07 A 8.1 A 8.13 A 8.17 A 8.23 A
Open Circuit Voltage (Voc) 47.1 V 47.1 V 47.2 V 47.4 V 47.5 V
Short Circuit Current (Isc) 8.5 A 8.53 A 8.55 A 8.6 A 8.65 A
Temperature 43±2 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5,
windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range 40~85 °C
Temperature Coefficient of Pmax 0.34 %/°C
Temperature Coefficient of Voc 0.25 %/°C
Temperature Coefficient of Isc 0.04 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 20 A
Material Data
Panel Dimension (H/W/D) 1762x1134x30 mm
Weight 21.8 kg
Cell Type Monocrystalline
Cell Number 144
Glass Type Anti-reflection Coating
Glass Thickness 3.2 mm
Encapsulant Type EVA
Frame Type Anodized Aluminium Alloy
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2

➤ Designed for compatibility with existing mainstream optimizers, inverters
and mounting systems
➤ Perfect size and low weight. Easy for handling. Economy for transporting
➤ Diverse installation solutions. Flexible for system deployment

Universal solution for residential and C&I rooftops
• Designed for compatibility with existing mainstream optimizers, inverters
and mounting systems
• Perfect size and low weight. Easy for handling. Economy for transporting
• Diverse installation solutions. Flexible for system deployment

Trina Solar Photovoltaic Modules Mono Facial Solar Panel 415w 420w 425w 430w
435w 0

➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative
load

Trina Solar Photovoltaic Modules Mono Facial Solar Panel 415w 420w 425w 430w
435w 1

Trina Solar Photovoltaic Modules Mono Facial Solar Panel 415w 420w 425w 430w
435w 2

Trina Solar Photovoltaic Modules Mono Facial Solar Panel 415w 420w 425w 430w
435w 3

Trina Solar Photovoltaic Modules Mono Facial Solar Panel 415w 420w 425w 430w
435w 4Trina Solar Photovoltaic Modules Mono Facial Solar Panel 415w 420w
425w 430w 435w 5
