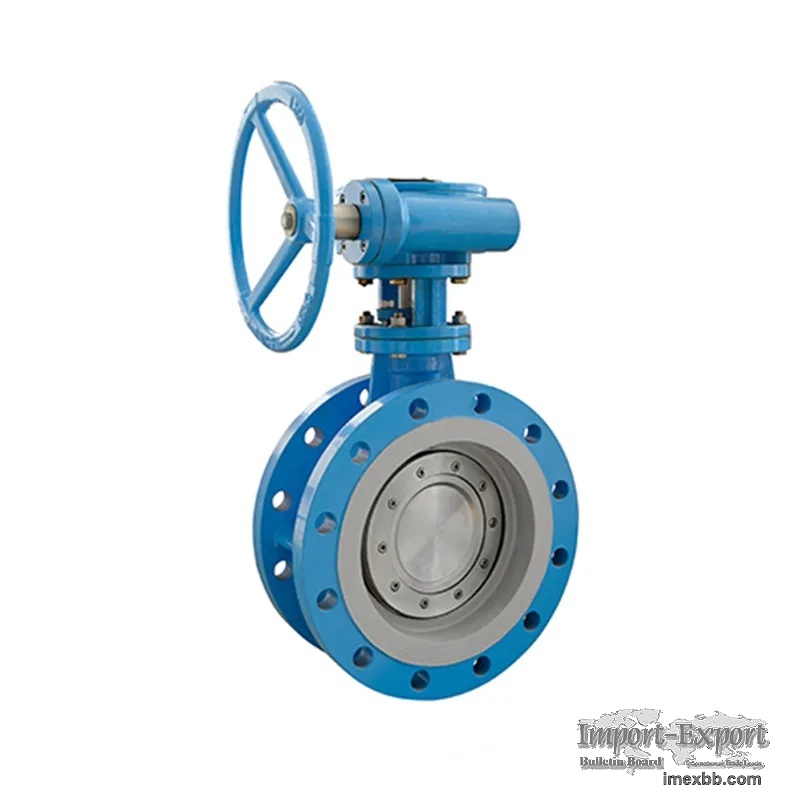

Triple Eccentric Flange Butterfly Valve

The triple eccentric flange butterfly valve has three eccentricities. The first
eccentric shaft deviates from the center line of the sealing surface, the
second eccentric shaft deviates from the center line of the pipeline and the
valve, and the third is the angle between the unique eccentric valve seat and
the center of the pipeline. In this way, the valve seat and the sealing ring
are completely separated during the entire switching process.
Main Features
Key Features Anti-blow-out stem design – safe & reliable.
Stem position indicator + top mounting flange for easy position feedback.
Torque-sealed construction guarantees sustained bi-directional zero-leakage
performance.
Connection Ends Flanged (FLG)
Operation Lever, Gear, Electric, Pneumatic, etc.
Main Materials WCB, 304, 316, CF8, CF8M, 2205, Alloy 20, …
Sealing Materials Soft seat (EPDM, NBR, PTFE, …) or Metal-to-Metal
Applications Solvents, acids, water, natural gas and other severe /
demanding services
Design & Manufacture API 609
Face-to-Face API 609 / ASME B16.10

Click to Enlarge
