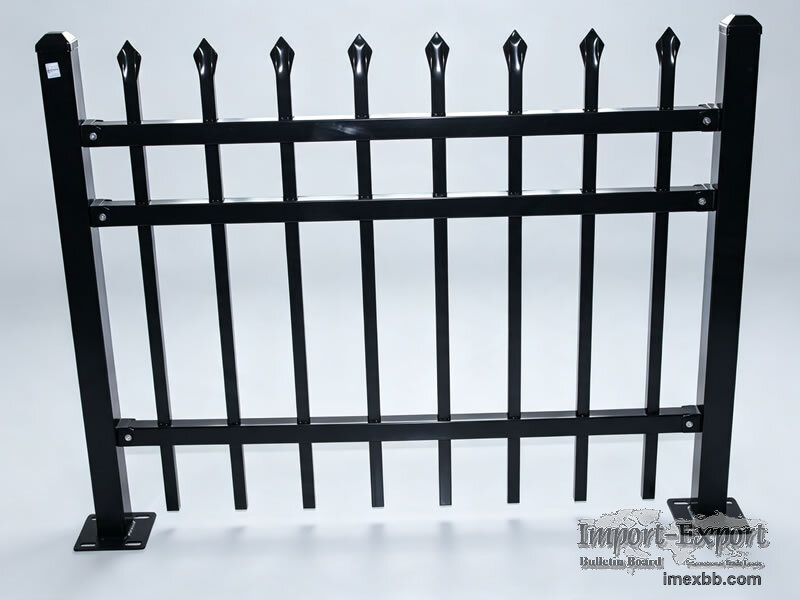

Tubular Fence

Tubular Fence panels are welded from steel tubes and used for garden fencing,
school boundaries, factory areas, pool fencing, villas and commercial sites.
Common panel heights are 1.2 m, 1.5 m, 1.8 m, 2.1 m and 2.4 m, with 2400 mm as
a regular panel width. Rails are usually 40 x 40 mm or 40 x 30 mm. Pickets can
be 16 x 16 mm, 19 x 19 mm, 25 x 25 mm or 30 x 30 mm. Posts are commonly 50 x 50
mm, 60 x 60 mm, 65 x 65 mm, 80 x 80 mm or 100 x 100 mm.
Youzi Development Zone, Anping County, Hebei, China
sales@wiremesh-fence.net
+86 133 8338 1333 / +86 13303187905
www.wiremesh-fence.net
Tubular Fence is made from welded steel tubes and used for residential fencing,
school boundaries, factory areas, pool fencing, parks, villas, and commercial
security projects. The panel is usually built with square pickets, horizontal
rails, steel posts, brackets, and base plates. Common styles include flat top,
spear top, ornamental spear top, and custom welded patterns. For outdoor use,
the steel tube is normally galvanized and then powder coated. Standard colors
include black, green, gray, and other RAL colors on request. Matching swing
gates and sliding gates can be supplied for the same fence line.

Specifications
Product name: Tubular Fence

Common names: Tubular steel fence, picket welded fence, ornamental fence, steel
security fence

Material: Q195 steel tube, Q235 steel tube, aluminum tube, wrought iron on
request

Panel height: 1.2 m, 1.5 m, 1.8 m, 2.1 m, 2.4 m

Panel width: 2400 mm is common. Other widths can be made by order.

Rail size: 40 x 40 mm, 40 x 30 mm, 50 x 50 mm

Picket size: 16 x 16 mm, 19 x 19 mm, 25 x 25 mm, 30 x 30 mm

Post size: 50 x 50 mm, 60 x 60 mm, 65 x 65 mm, 80 x 80 mm, 100 x 100 mm

Top style: Flat top, spear top, pressed spear top, ornamental spear top

Welding type: Fully welded panel, picket inserted through rail, or face to face
welded structure

Surface treatment: Galvanized and powder coated. Hot dip galvanized finish can
be supplied for higher outdoor corrosion demand.

Color: Black is common. Green, gray, white, and other RAL colors are available.

Fittings: Steel brackets, anti tamper fasteners, base plates, post caps, hinge
sets, latch sets

Matching gates: Manual swing gate, sliding gate, electric sliding gate on
request

Application
Residential and villa fencing: Used for front yards, garden boundaries,
driveways, and community fencing.

School and park fencing: Suitable for open boundary lines where visibility and
clean appearance are needed.

Factory and commercial sites: Used around workshops, warehouses, industrial
yards, and equipment areas.

Pool and public facility fencing: Common for pool areas, sports fields,
roadsides, and municipal projects.
