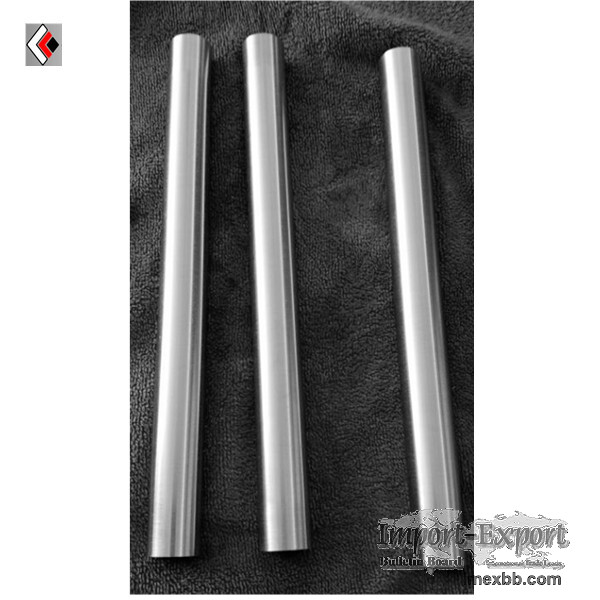

Tungsten rod

Tungsten rod
Quick Details
• Place of Origin: Henan, China (Mainland)
• Brand Name: Kekai
• Model Number: KK-S
• Dimensions: as required
• color: black or silver gray
• size: customized
• application: industrial/solar
• packing: plywood case or as required
• material: pure tungsten and alloy tungsten
• characteristic: high quality, workability
Packaging & Delivery
Packaging Details: plywood case or as required
Delivery Detail: 7-20 days
1. Grade: W1, W2, WAL, WLa, WNiFe
2. Purity :> =99.95%
3. Characteristic:
Melting Point: 3410 Degrees Celsius
Boiling Point: 5927 Degrees Celsius
Density: 19.3g/cm3
High quality, workability
4. Certificate: ISO9001:2008
5. Product Feature: High melting point, High-density, high temperature
oxidation resistance, long service life, resistance to corrosion..
6. Dimensions and tolerance (According to clients’ requirements):
Tungsten content Type Diameter
(mm) Dia. tolerance
(mm) Length
(mm) L tolerance
(mm)
99.95% Sintering rod 40-100 ±3 500max ±5
Forged rod 20-80 ±2 800max ±5
Ground rod 2-60 ±0.1 650max ±1
Other element content≤ Fe 0.001 Al 0.0001 Bi 0.0001 Si
0.001
Ca 0.001 Ni 0.00035 Mo 0.0008 O 0.0047
P 0.001 N 0.002 Mg 0.0001 Pb 0.0001
Sn 0.0001 Sb 0.0001 C 0.00085 As 0.0001
7. Application:
Tungsten rod/bar can be widely used in illumination, heater and the electronic
mechanical engineering, making the electricity photo source, the automobile and
the tractor light bulb, make lattice side rod, framework, leading wire,
electrode, heater and contact materials and so on.

Minimum Order: 1 kilograms
