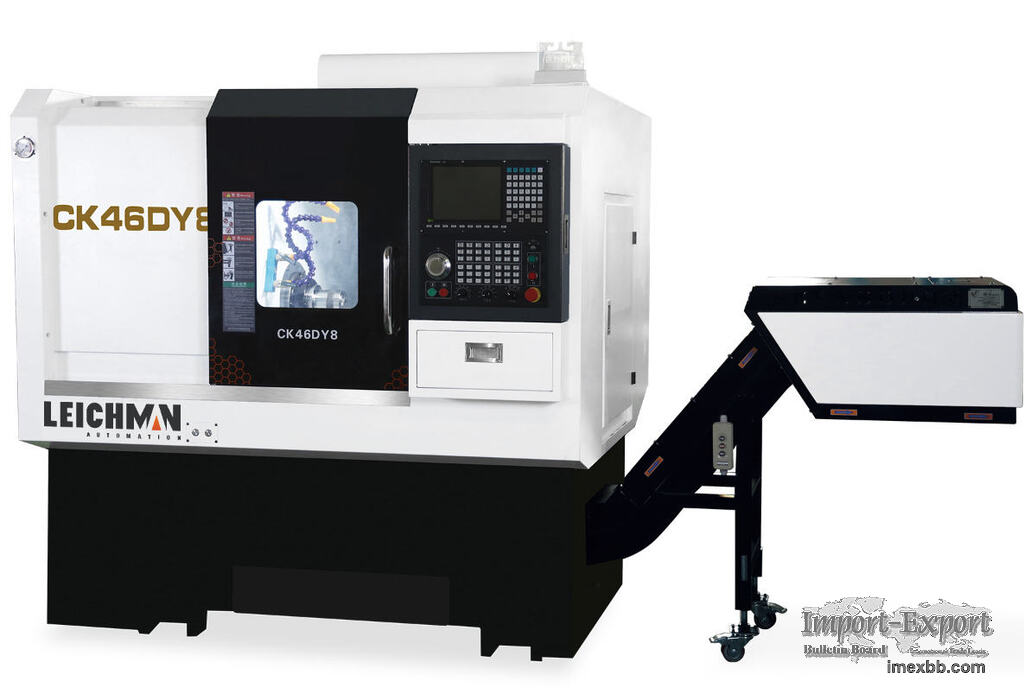

Turning and Milling CNC Lathe CK46DY8

Turning and Milling CNC Lathe CK46DY8
Product Description
The CNC machine bed is integrally cast iron, and the machine bed is inclined at
30°, which makes the operation of the machine tool and chip removal more
convenient.
The X-axis and Z-axis adopt high-rigidity linear rails, and the optimized span
between the rail and the rail low resistance, high rigidity, high precision and
displacement speed up to 24m/min, improve work efficiency.
Item Unit CK46DY8
Capacity Max swing over bed mm 420
Max cutting diameter mm 300
Max cutting length mm 220
Travel X axis travel mm 800
Y axis travel mm 255
Z axis travel mm 360
Precision Spindle runout mm 0.004
Spindle index position accuracy ±0.002°
X/Y/Z axis reposition precision mm 0.002
Integral casting bed Bed tilt angle 30°
Y-axis series Turning and Milling Composite CNC lathe｜CNC Lathe Milling
Machine
1. The transmission part of the machine tool adopts high-precision Japanese THK
ball screw and high-speed linear rail from Japanese THK.
2. Leichman CNC Lathe Milling Machine can be equipped with a 4+4 integrated
power head, Y-axis and C-axis functions; it can realize turning and milling
combined processing, making complex product processing easier, reducing the
trouble caused by secondary processing and improving product accuracy.
3. The main shaft adopts Taiwan high-precision main shaft which contains Swiss
SKF precision bearings.
