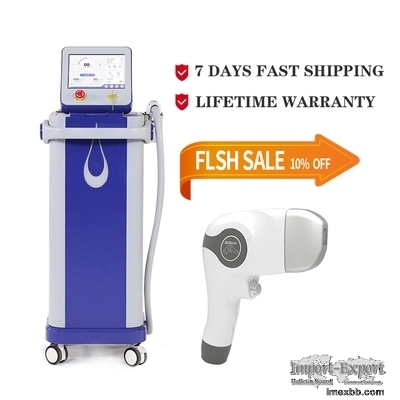

Tuv Medical Ce Dilas Laser Machine Ice Platinum 755 808 1064

Diode laser hair removal machine working principle:

The working principle is to control the laser power supply through the
microprocessor to provide an adjustable constant current for the laser module
based on the selective thermal dynamics, so that the high-power laser diode
inside the laser module can convert electrical energy into optical energy, and
output a continuous laser with a wavelength of 808nm. The effective penetration
depth of 808nm wavelength can reach the target tissue (dermal papilla), The
appropriate pulse duration ensures that the target tissue produces enough heat
damage and the surrounding tissue is hardly affected, so that the hair falls
off and loses the ability of regeneration, so as to achieve the purpose of
sexual hair removal.







Specification



Wavelength 808nm
Fluence 1-120J/cm2
Laser Type German Diode Arrays
Spot Size 12*12mm2
Repetition Rate 0.5-10Hz
Pulse Width 10-1400ms
Peak Power 2000W
Cooling Powerful Sapphire contact cooling (-10°C~0°C )
Stand-by Working Continuously for 18 hours
Display 8.4" True Color LCD Touch Screen
Electrical Requirements 100-240VAC, 20A max., 50/60Hz
Net Weight 43 kgs
Dimensions (WxDxH) 53*48*104cm



Tuv Medical Ce Dilas Laser Machine Ice Platinum 755 808 1064 0



808 hair removal machine is based on the principle of photothermal dynamics.
The output energy is relatively uniform, which can directly act on the deep
tissue of the skin, keep the hair follicle at a relatively constant
temperature, and gradually make the hair fall off. The energy and pulse width
used should be adjusted according to the number of individual hairs, so as to
make the effect more satisfactory. Do not operate at home without permission to
avoid skin damage caused by incorrect manipulation.
