UAV Motor Series

Direct mount propeller or Hub style compatible
Multi-length mounting hardware included
High Power N42sh magnets
Precision NMB bearings

Product Description
12v Brushless Motor Series
Motor efficiency is typically calculated by dividing thrust by power at 100%
throttle, measured in gram/watt. The higher this number is, the more efficient
the motor.
High thrust drone motors are important to look at efficiency through the whole
throttle range though, not just the top end. Some motors might be efficient at
lower throttle but could lose efficiency by drawing increasingly higher current
as they approach their limits.
With less efficient motors not only are you wasting energy and flight time,
your batteries might also suffer from voltage sag, this effect will be
compounded if you are using poor quality LiPo batteries.
Remember that Watt is calculated by multiplying voltage and current, as we know
the voltage of the battery we will be using. Another good way to look at
efficiency is to use gram/amp (thrust/current).
Generally, the more thrust generated, the larger the current drawn to produce
that thrust, so uav motor with high thrust and low current are preferred.
Inefficient motors either generate too little thrust or draw too much current.

If you want your plane to fly longer, we suggest that you consider these
motors.
U series motors are designed specially for long flight time drones. These
motors are highly efficient, light, and run smoothly.
With the guarantee of strength, the caps of U motors are highly hollow-cutted
to save weight, so that these motors can reach maximum thrust to weight ratio
and gain more flight time.
U series motors are tested with the strictest procedures of TTF’s QC
protocols. Each of these motors are dynamically balanced with our high-test
standard. The axial and radial runouts of each rotor are tested strictly
Features:
• High Power N42sh magnets
• Precision NMB bearings
• 0.2mm laminations for optimal efficiency
• Ample cut to length motor wires for a clean install
• Direct mount propeller or Hub style compatible
• Multi-length mounting hardware included
U2212/ U3506/ U5208 motors are applicable for 300-500mm class multirotor.

Specification

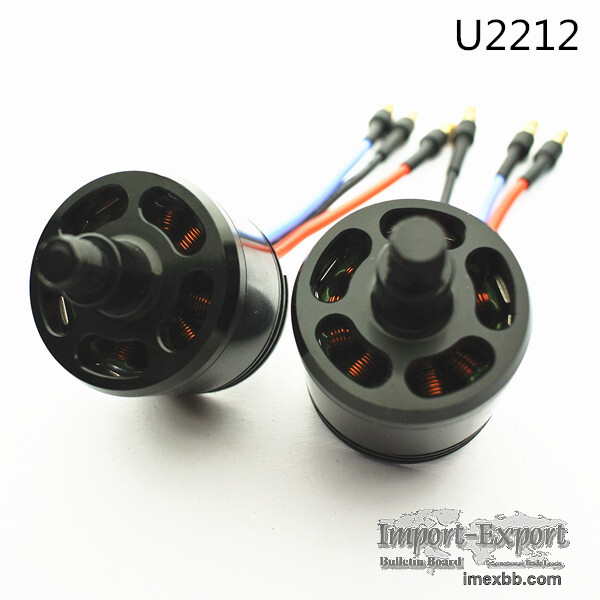

UAV motor U2212
Model Volts(v) Prop Amps(A) Thrust(gf) Watts(W)
Efficiency(G/W) Temperature
U2212-800KV 14.8V/4S 9450 2.1 293 31.08 9.43 58℃
4 476 59.2 8.04
5.6 605 82.88 7.30
7.4 742 109.52 6.78
10.3 918 152.44 6.02
U2212-980KV 11.1V/3S 9450 3.2 300 36 8.45 52℃
4.5 400 50 8.01
6.1 500 68 7.38
7.8 600 87 6.93
11 780 122 6.39
14.8V/4S 9450 4 470 59.2 7.94 60℃
8 795 118.4 6.71
12 1010 177.6 5.69
14 1125 207.2 5.43
18 1330 266.4 4.99

UAV motor U3506
Model Volts(V) Prop Amps(A) Thrust(gf) Watts(W)
Efficiency(G/W) Temperature
U3506-750KV 11.1V/3S 11*4.7 3.1 365 34.41 10.61 30℃
6.1 575 67.71 8.49
9 730 99.9 7.31
11.6 865 128.76 6.72
14.8V/4S 13*6.5 4.8 565 71.04 7.95 48℃
9.8 880 145.04 6.07
14.7 1058 217.56 4.86
21 1225 310.8 3.94
26 1475 384.8 3.83

UAV motor U5208
Model Volts(V) Prop Amps(A) Thrust(gf) Watts(W)
Efficiency(G/W) Temperature
U5208-300KV
22.2V/6S 20prop 10 1800 222 8.11 40℃
20 2600 444 5.85
23 2750 510 5.38
31 3300 688 4.79
16prop 5 970 111 8.73 43℃
15 1950 333 5.85
25 2600 555 4.68
35 3000 777 3.86
14.8V/4S 20prop 5 850 74 11.48 52℃
15 1700 222 7.66
20 2000 296 6.75
27 2400 400 6.01
Shenzhen TitanFlying Technology Co., Ltd (TTF) is located in Shenzhen
University Town, known as the Silicon Valley of China. TTF has more than 20
years' experience on mechanical processing. Our main product are uamanned
aerial vehicle, including professional drones and small selfie drone, as well
as DIY components for drones. We provide fastest drone motors, 12v brushless
motor and etc, want to know selfie drone price, please contact us.

Minimum Order: 1 pieces
