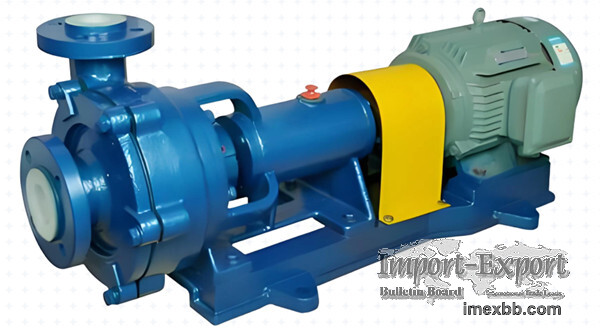

UHB-ZK corrosion & wear resistant slurry mortar pump

UHB-ZK corrosion & wear resistant slurry mortar pump is single-stage single-suction
cantilever centrifugal pump. The flow-through parts are made of steel-lined ultra-
high molecular weight polyethylene (UHMWPE). This material is the current new
generation of corrosion-resistant and wear-resistant engineering plastics for pumps
in the world. Its most outstanding advantage is that it has excellent wear
resistance, impact resistance (especially low-temperature impact resistance), creep
resistance (environmental stress cracking resistance) and excellent corrosion
resistance among all plastics. The remarkable features of this pump are: multi-
function, that is, one pump can adapt to various working conditions. Such as
conveying acid, alkaline clear liquid or slurry; various corrosive slurries in the
smelting industry; various dilute acids in the sulfuric acid industry; various
sewage in the environmental protection industry, etc.
This pump is both corrosion-resistant and wear-resistant, and has a wide range of
uses. This pump has been used for a long time in acidic slurry and dilute acid
positions in more than 30 large non-ferrous smelting and sulfuric acid enterprises.
Its corrosion resistance, wear resistance, sealing reliability, and service life
have all been highly evaluated.
Features: corrosion-resistant and wear-resistant, one pump for multiple uses,
suitable for both acid and alkali clear liquid slurry.
Structure: (1) The pump body is steel-lined ultra-high molecular polyethylene,
with a lining thickness of 8-20mm.
(2) There are two types of impellers: semi-open type and closed type, which can be
selected according to the medium conditions.
(3) Seal: K-type dynamic seal.
4. Applicable media: sulfuric acid with a concentration of less than 80%, nitric
acid with a concentration of less than 50%, hydrochloric acid of various
concentrations, and liquid alkali. It is suitable for both clear liquid and slurry.
5. Key technical parameters: operating temperature -20℃~80℃ (for special
requirements, modified materials can be used to increase to 105℃),inlet
φ32mm~φ250mm, flow rate 5~600m³/h, head within 50m.
(II) Extremely wide range of applications 1. Sulfuric acid and phosphate fertilizer
industry: conveying of dilute acid, mother liquor, sewage, seawater, fluosilicic
acid containing silica gel, phosphoric acid slurry and other media. 2. Nonferrous
metal smelting industry: particularly suitable for conveying various acid liquids,
corrosive ore slurries, slurry (for filter press), electrolyte, sewage and other
media for wet smelting of lead, zinc, gold, silver, copper, manganese, cobalt, rare
earth, etc. 3. Chemical and other enterprises: various clear liquid or slurry
stations of sulfuric acid, hydrochloric acid, alkaline, and oil. 4. Chlor-alkali
industry: hydrochloric acid, liquid alkali, electrolyte, etc. 5. Water treatment
industry: pure water, high-purity water, sewage (leather sewage, electroplating
sewage, electronic sewage, papermaking sewage, textile sewage, food sewage,
domestic sewage, pharmaceutical sewage, etc.). 6. Iron and steel enterprises:
sulfuric acid and hydrochloric acid stations of pickling system, sewage with
impurities. 7. Matching wet desulfurization dust collector: can be used in
alkaline, acidic and corrosive positions at the same time.

Minimum Order: 1 sets
