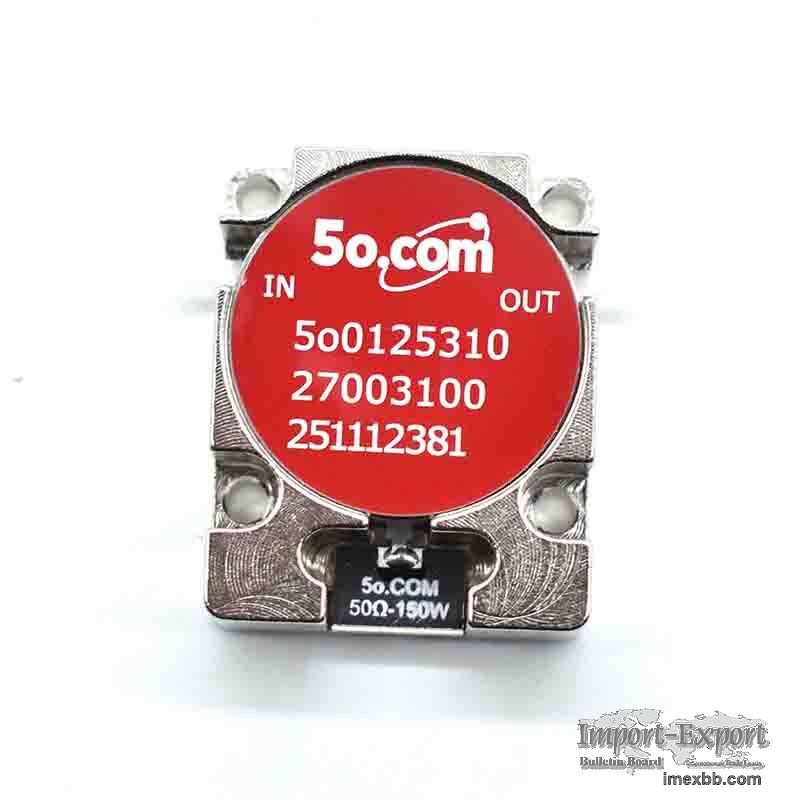

UHF 2700 to 3100MHz RF Drop in Isolator

Model Number:5o012531027003100
Frequency Range:2700~3100MHz
Insertion Loss:0.25dB
Isolation:23dB
VSWR:1.2
Forwa , rd Power:200W
Reverse Power:100W
Connector Type:TAB
Temperature:-40 ~+85℃
Dimension:25.4*31.7*10.5mm

Appli , cation
RF power amplifier protection.
Digital, Satellite, Mobile Communication.
Medical, Communication, Security.
Military, Space and Commercial applications.
It can be dual junction or even three for high isolation.
Built to the rigorous standards required for commercial implementations,
military and space.
Custom design is available upon request.
Standard guaranteed for one year.

5o.com Inc. is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.
Focusing on cutting-edge fields such as 5G communication, satellite navigation,
radar electronic countermeasures, and aerospace, we provide customers with
high-performance microwave passive device integrated solutions.

Minimum Order: 1 pieces
