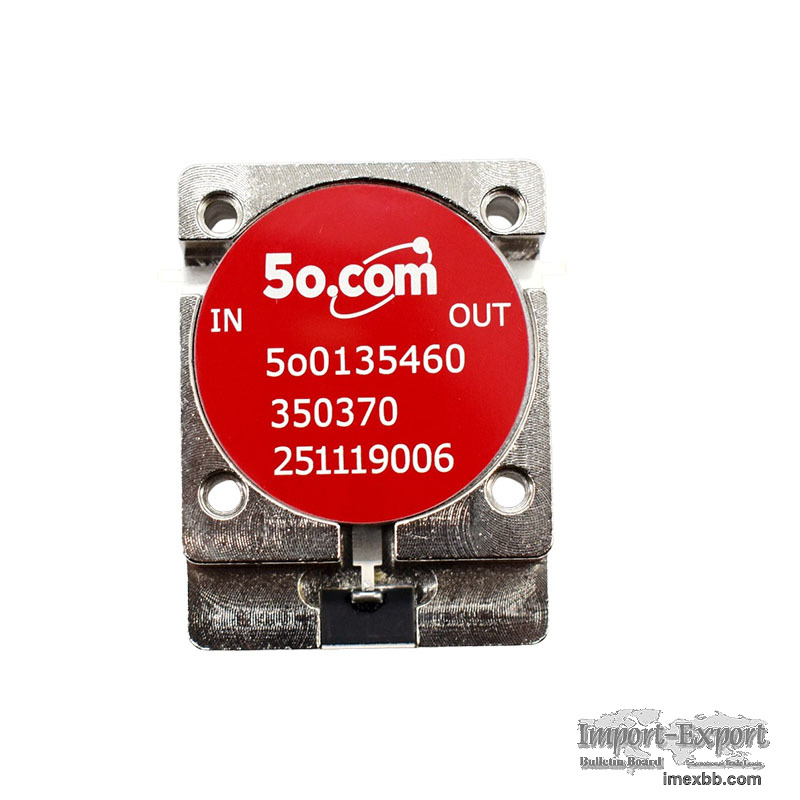

UHF Band 350-370MHz Microwave Drop In Isolator

UHF Band 350-370MHz Microwave Drop In Isolator-Low insertion loss (0.35dB),
high isolation (21dB), 300W forward power, TAB package. Ideal for RF amplifier
protection, communication systems & drone applications.

Model number:5o0135460350370
Frequency Range:350~370MHz
Insertion Loss:0.35dB
Isolation:21dB
VSWR:1.2
Forwa , rd Power:300W
Reverse Power:150W
Dimension:35*46*11mm
Operating Temperature:-40~+85℃
Storage Temperature:-55℃~+125℃
Impedance:50Ω

Minimum Order: 1 pieces

UHF Band 350-370MHz Microwave Drop In Isolator
