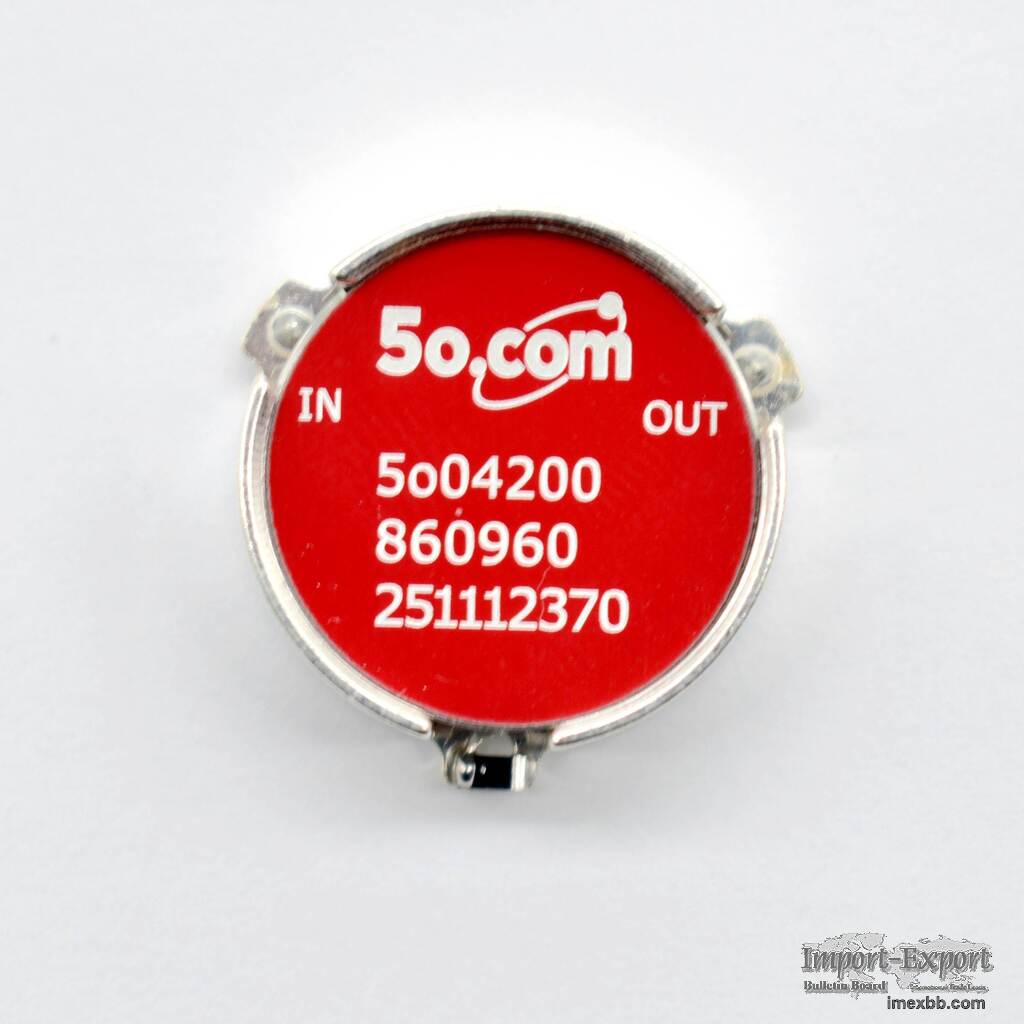

UHF Band 860 to 960MHz SMD RF Surface Mount Isolator

Model Number:5o04200860960
Frequency Range:860~960MHz
Isolation Min:20dB
VSWR Max:1.25
Insertion Loss Max:0.4dB
Connector Type:SMT
Forward Power:60W
Reverse Power:10W
Impedance:50 ohm
Operating Temperature:-40~+85 degrees C
Storage Temperature:-55~+125 degrees C
Dimensions: Diameter 20.4 mm*Height 8.6 mm

Applications:
RF power amplifier protection in UHF communication systems
Digital mobile and base station equipment
Medical communication and security devices
Military and commercial UHF applications
IoT and M2M wireless modules

Recommended Matching Products:
SMT RF power amplifiers
UHF transceiver modules
PCB based base station hardware
Test and measurement equipment for UHF bands
Industrial and public safety communication systems

5o.com is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.
