UL1185 PVC UL Cable

The most common UL coaxial cable is UL1185. They are typically made with four
internal layers which includes an inner conductor at the center. A dielectric
insulator layer coats the inner conductor, above which a second conductive
layer made of braided wires covers the inner insulation layer. All of these are
then encompassed with a thin insulating outer layer.

Features of UL1185 PVC UL Cable:
Rated Temperature: 80℃
Rated Voltage: 300V
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 30 AWG - 4/0 AWG, Solid or Stranded.
Insulation: Extruded PVC

Conductor size Minimum average thickness Minimum thickness at any point
30-16 AWG 15 mils 13 mils
15-10 AWG 30 mils 27 mils
9-8 AWG 45 mils 40 mils
7-2 AWG 60 mils 54 mils
1-4/0 AWG 80 mils 72 mils
Shielding: Aluminum Foil + Copper Spiral Wrap / Copper Braiding
Jacket: Extruded PVC, 15 mils (0.38mm) minimum average thickness, 12 mils
(0.305mm) minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring of appliances. Tags may indicate the following: 600 V Peak
- For Electronic Use Only.

Specifications of UL1185 PVC UL Cable:
Cable Type Conductor Insulator Spiral Shield Jacket
Size Construction Cross Section Diameter Thickness
Diameter (No. x mm) Thickness Overall Diameter
AWG No. Copper(Φmm) (mm²) (mm) (mm) (mm)
(mm) (mm)
UL1185
Coaxial
Cable 30 7 0.10 0.05 0.31 0.35 1 32x0.10 0.40
2
28 7 0.127 0.09 0.39 0.41 1.2 34x0.10 0.40
2.2
26 7 0.16 0.14 0.49 0.41 1.3 38x0.10 0.40
2.3
24 11 0.16 0.22 0.61 0.39 1.4 42x0.10 0.40
2.4
22 17 0.16 0.34 0.76 0.39 1.55 43x0.10 0.40
2.55
20 26 0.16 0.52 0.94 0.43 1.8 45x0.12 0.41
2.85
18 42 0.16 0.84 1.20 0.43 2.05 51x0.12 0.61
3.5
16 66 0.16 1.33 1.50 0.45 2.4 55x0.12 0.58
3.8
Shonsin Electronics Co., Ltd is a professional custom custom cable
manufacturers, we provide cable custom, such as pvc cable, tpe cable, xlpvc
cable, silver cable, battery cables and etc. Want to know more? Please contact
us.

Minimum Order: 100 pieces

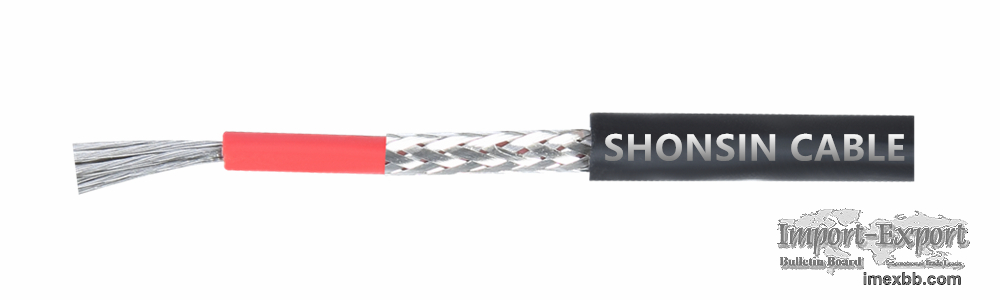

UL1185 PVC UL Cable
Enlarge Click to Enlarge
