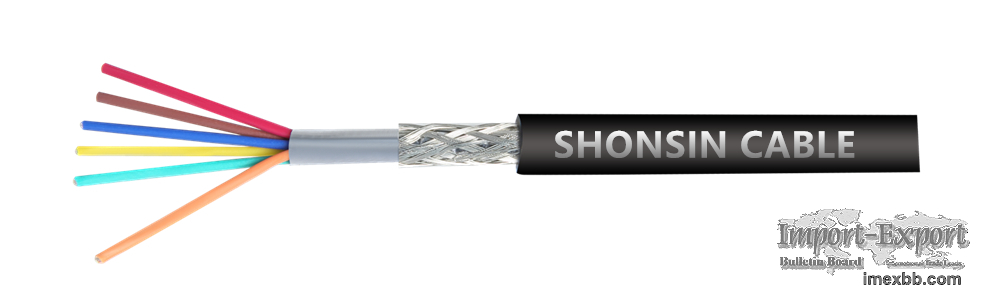

UL2464 PVC UL CABLE

UL 2464 Cable is multi conductor that comes with extruded non-integral jacket.

Features of UL2464 PVC UL Cable:
Rated Temperature: 80℃
Rated Voltage: 300 Vac
Fire Resistance: UL VW-1 & CSA - FT1
Insulated Conductor: Labeled or complying with manufacturer's AWM Procedure.
Assembly: Two or more singles, twisted pairs of groups of twisted singles
twisted together or singles or groups of singles may be laid parallel to form
flat, oval, or round cable. Lay not specified. Barrier layer and/or fillers
optional. The manufacturer shall maintain a complete description of each
assembly. May use the same or mixed AWG size.
Covering: Optional
Shielding: Optional
Jacket: Extruded PVC
Diameter of cable under jacket Minimum average thickness Minimum
thickness at any point
0.700 inch or less 30 mils 24 mils
0.701-1.000 inch 45 mils 36 mils
1.001-1.500 inch 60 mils 48 mils
1.501-2.500 inch 80 mils 64 mils
2.501-4.000 inch 110 mils 88 mils
4.001 inch and larger 140 mils 112 mils
Braiding: Optional
Standard: Appliance Wiring Material UL 758.
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use:  Internal wiring or external interconnection of electronic equipment.

Shonsin Electronics Co., Ltd is a professional custom wire and cable
manufacturers, we provide cable custom, such as pvc cable, ribbon cable, xlpvc
cable, silver cable, battery cables and etc. Want to know more? Please contact
us.

Minimum Order: 100 pieces
