Ultra high thermal conductivity aluminum-PCB

PCB description:
Model Number: aliuminum pcb
aluminum pcb manufacturer:Shenzhen Semshine Tech Co.,Ltd
Place of Origin: Shenzhen, China
Brand Name: SEMSHINE
Base Material: Aluminum high TG
Layers: 1L
Copper Thickness: 1oz
Board Thickness: 0.3mm
Min. Hole Size: 0.08mm
Min. Line Width: 2 Mil
Min. Line Spacing: 0.1um(3 Mil)
Surface Finishing: ENIG
Color: White Solder mask and Black silkscreen
https://www.shinepcba.com/aluminum-p , cb.html
Item Aluminum substrate specifications:
Item Unit Specification Test condition
Insulation thickness pm Max Min 150
70 —
Solder resistance (288*C) Sec. Min 600 IPC-TM-650 3.10.1.12
Thermal shock 288°C*107cycle Min 6 Times IPC-TM-650 2.4.13.1
Peel strength (Normal status) Ib/in Min 7.5 IPC-TM-650 2.4.8
Breakdown Voltage V/mil   750 IPC-TM-650 2.5.6
Volume resistivity (Normal status >E+14) Q • cm   1013 IPC-TM-
650 2.5.17.1
Surface resistivity (Normal status >E+12) Q 一 IO” IPC-TM-
650 2.5.17.1
Dielectric constant       IPC-TM-650
1 MHz Normal status —   8.0 2.5.5.3
2.5.5.5
1 GHz Normal status     7.6 2.5.5.S
Dissipation Factor       IPC-TM-650
1 MHz Normal status     0.005 2.5.5.3
2.5.5.5
1 GHz Normal status     0.003 2.5.5.9
Water absorption %   0.2 IPC-TM-650 2.6.2.1
Thermal conductivity
(measured on insulation layer only) W/mcC   9.0 ASTM-E1461
Flammability 94V-0   Pass IPC-TM-650 2.3.9
Tg ,c   160 IPC-TM-650 2.4.24
Td ,c   350 TBD (5wt% loss)

Application Areas for Aluminum PCB Fabrication:
Auminum printed circuit sheets are among the most broadly and ordinarily
utilized circuit sheets? The application areas for aluminum PCB board includes:
1. Surgical Lighting Tools
2. High-power Scanners
3. Tail Light Assemblies
4. Power Transmission Systems
5. Automotive Dashboards
6. Power Converters
7. Interior Lighting
8. Medical Operating Theatre Lighting
9. Landscape Lighting
 Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation
Quality control:
1. Supplier Evalustion and Ranking
2. Contact Appraisal
3. Pre-production Arrangement
4. Raw material Inspection
5. Control in Manufacturing
6. Test of finished products

Minimum Order: 1 square metres

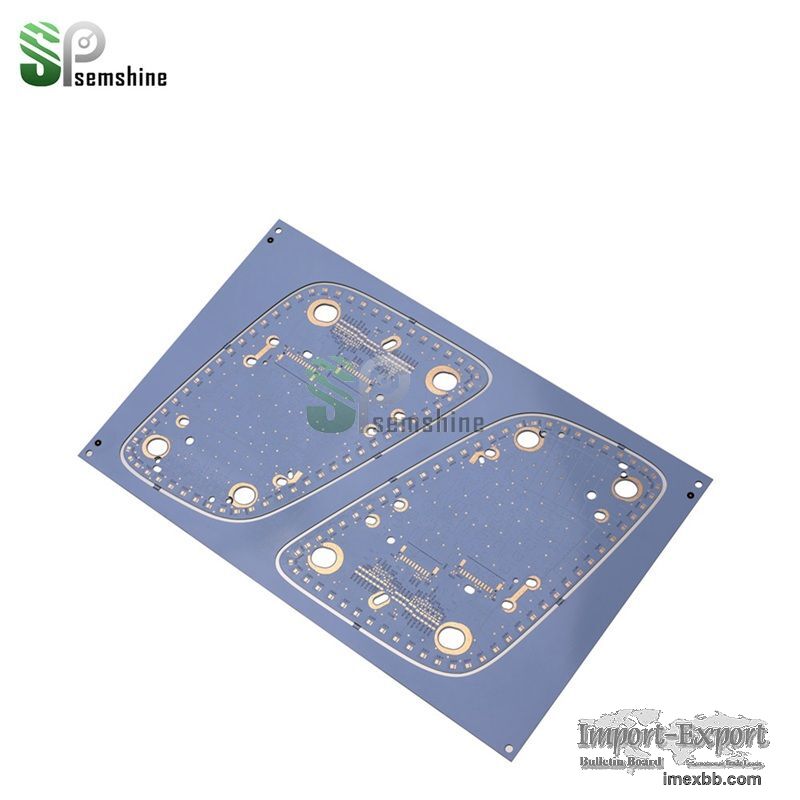

Ultra high thermal conductivity aluminum-PCB
