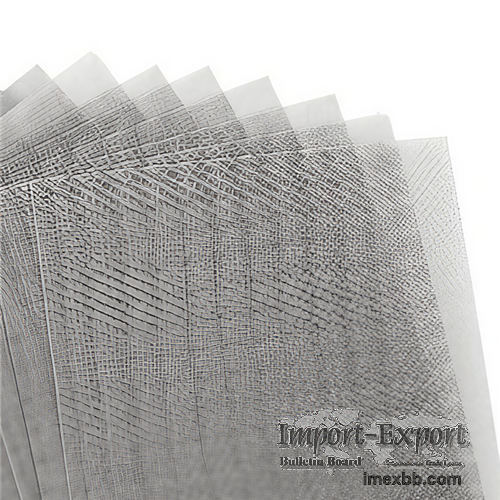

Ultra-thin Wire Mesh

Stainless Steel Ultra-thin Wire Mesh is a kind of wire mesh which made from
exceptionally thin wires, often with diameters measured in microns. The uses of
carefully selected materials and the most advanced weaving technology adopted
ensure the thickness of the wire mesh is within the allowed tolerance range.
Hence the precision of the wire mesh is further enhanced for printing
requirements. Ultra-thin wire mesh is famous with its combination of
precision, flexibility, and strength. The mainly applications of it are in
advanced industrial, medical, and scientific applications. Woven wire cloth
ability to perform in demanding environments where both fine detail and high
performance are required sets it apart from other types of wire mesh.
Properties:
Ultra-thin stainless steel wire cloth is used typically when heat and corrosion
resistance is required, and frequently utilized in applications requiring
shielding of electromagnetic interference and radio frequency interference.
All of Ultra-thin wire mesh is weaved by plain weave.
Product Name Mesh Count
(pieces) Wire Diameter
(mm) Screen Size
(mm) Opening Ratio Screen Thickness
BS-325/28 325 0.028 0.050 41% 62 ± 2
BS-325/30 325 0.030 0.048 38% 62 ± 2
BS-300/30 300 0.030 0.055 42% 68 ± 2
BS-270/35 270 0.035 0.059 39% 77 ± 2
BS-250/30 250 0.030 0.072 50% 62 ± 2
BS-250/35 250 0.035 0.067 43% 78 ± 2
BS-250/40 250 0.040 0.062 37% 90 ± 3
BS-200/40 200 0.040 0.087 47% 82 ± 3
