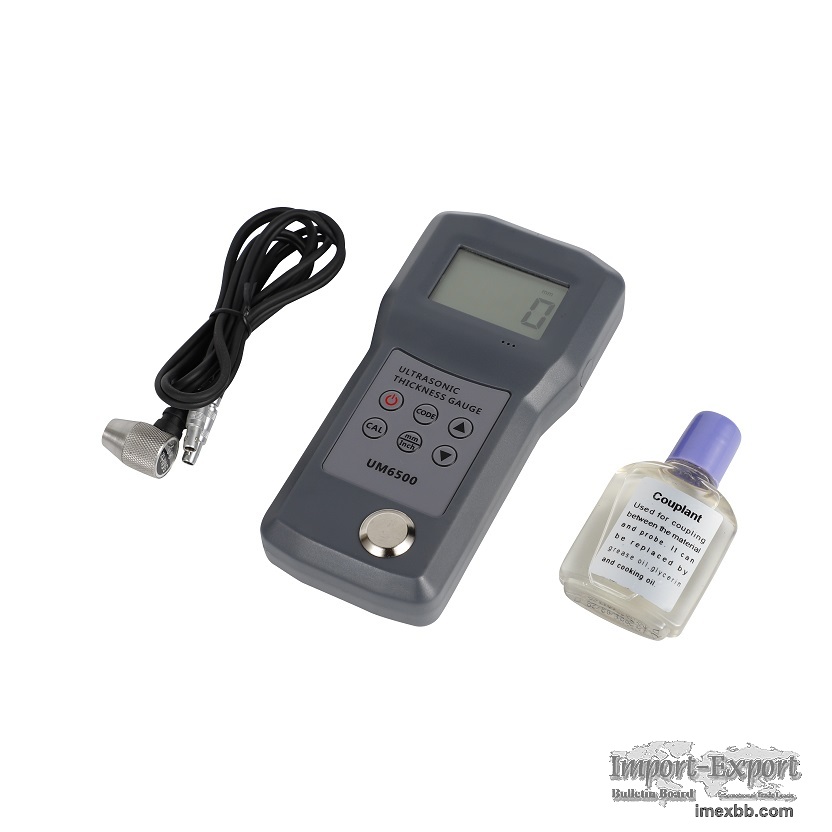

Ultrasonic Thickness Gauge UM6500

UM6500 Ultrasonic Thickness Gauge
Application Used for measuring thickness and corrosion of pressure vessels,
chemical equipment, boilers, oil storage tanks, etc. in industries of
petroleum, shipbuilding, power station, and machine manufacturing. Materials
measured: only 11 types of materials, including steel, cast iron, aluminum,
red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron,
nodular cast iron.
Features：
※ High resolution measurement
※ Probe automatic zero calibration for system error correction
※ Status indicator of the coupling and low battery.
※ Auto sleep and auto power off function to conserve battery life.
※ Humanized shape design, compact and portable, Can be used in harsh
environment.

Specifications:
Display , ：
Digits LCD with backlight.
Operating principle:
ULTROSONIC
Measuring range (metric/imperial):
1.0-245mm,0.05-8inch (in Steel).
Resolution： 0.1mm;
Accuracy：
±(0.5%H+0.1)mm, depends on materials and conditions
Units: Metric/Imperial unit selectable.
code: 11 groups
Power supply:
4x1.5 AAA size (UM-4) battery
Battery indicator: low battery indicator
Operating conditions:
0-+45℃(32℉-104℉)
≤90%RH
Dimensions:
140mm×60mm×22mm
Gloss Weight :1KG
Standard Delivery:
Main Unit,8mm Probe,Coupling Oil, User Manual ,Carrying Case.

Minimum Order: 10 pieces
