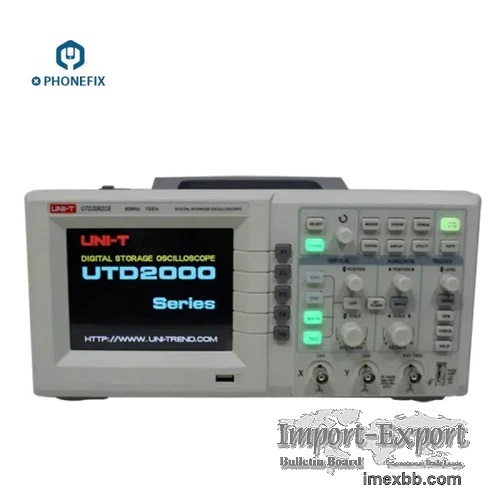

UNI-T UTD2062CE 2 Channels Digital Storage Oscilloscope

UTD2000E Series 2 channels Digital Storage Oscilloscopes: UTD2042CE /
UTD2062CE / UTD2082CE

Optional Type :
Option 1: UTD2042CE
Option 2: UTD2062CE
Option 3: UTD2082CE

Package Features :
Supports plug-and-play USB storage device. Communication with and remote
control of computer through the USB device;
Storage of waveform setups and interfaces waveform and setups reproduction;
Automatic measurement of 28 waveform parameters;
Unique waveform recording and replay function;
Edge, Plus, Video, Alternate trigger functions;
Unique Pass/Fail functions;
Multilingual menu displays.

UTD2062CE Specification :
Channels: 2
Bandwidth: 60MHz
Sample Rate: 1GS/s
Rise Time: ≤5.8ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity: 2mV/div~5V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Pluse, Video, Alternate
Interface: USB Device, USB Host, Pass/Fail

UTD2042CE Specification :
Channels: 2
Bandwidth: 40MHz
Sample Rate: 1GS/s
Rise Time: ≤8.7ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity: 2mV/div~5V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Pluse, Video, Alternate
Interface: USB Device, USB Host, Pass/Fail

UTD2082CE Specification :
Channels: 2
Bandwidth: 80MHz
Sample Rate: 1GS/s
Rise Time: ≤4.3ns
Memory Depth: 25kpts
Waveform Acquisition Rate: ≥2000wfms/s
Vertical Sensitivity: 2mV/div~5V/div
Timebase Range: 5ns/div~50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Pluse, Video, Alternate
Interface: USB Device, USB Host, Pass/Fail

Minimum Order: 1 pieces
