V-shore Frame

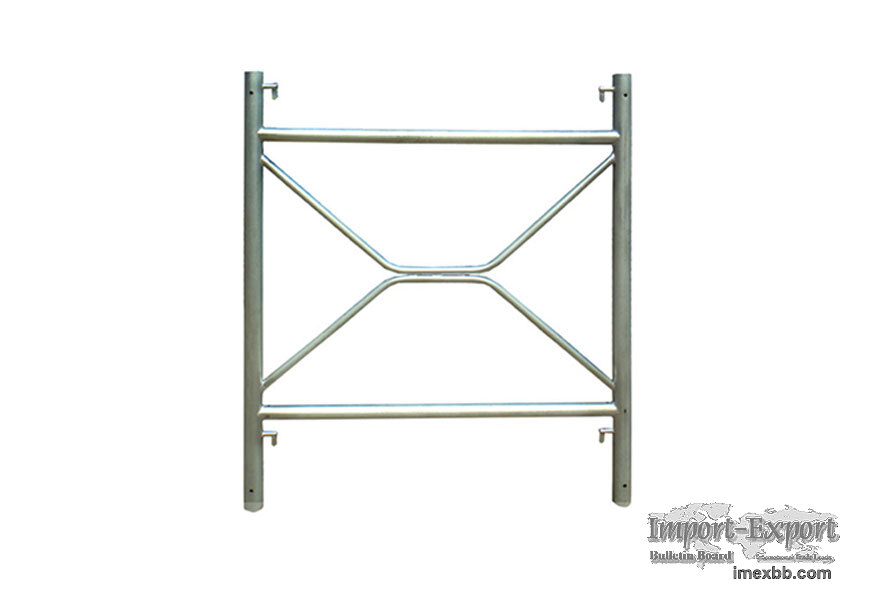

V-Shore Frame Conventional Scaffolding is a high load scaffolding system which
is consisted by three major components, frames, cross braces, top & base jacks.
Simple combination offer site easy erection and dismantle. All the material can
be stacked and stored in order. Wide shoring application in multiplex projects.

Features of V-shore Frames
Can reach different shoring height by the combination of different size frames
Distance between frames can be adjusted with different sizes of braces in order
to achieve different loads
35.1kN work load capacity for each leg.
Easy and compact for transportation and storage
Less maintenance in the future application


Specification of V-shore Frame
No. Items Size Description
1 V Shore Frame
1219*2130(W*H) 60*3.5-Q345

2 1219*1829 (W*H)
3 1219*1524 (W*H)
4 1219*1219(W*H)
5 1219*914(W*H)
11 Cross Brace 1829*914                 Q235 / ø27*1.8
12 1829*1219
13 1524*914
14 1524*1219
15 1219*914
16 1219*1219
17 Fork Head Jack L=800 Q235 / M50*4 / Cast steel nut
18 Base Jack L=800 Q235 / M50*4 / Cast steel nut
19 Base Plate L=150 M50*4
20 Connector #1 / ø48*3

Application of V-shore Frame
Residential and commercial buildings, bridges, and other heavy slabs or beams

Related products of V-shore Frame
TECON Ringlock Scaffolding, TECON Multi-purpose Prop, TECON Shoring Tower ST60.
