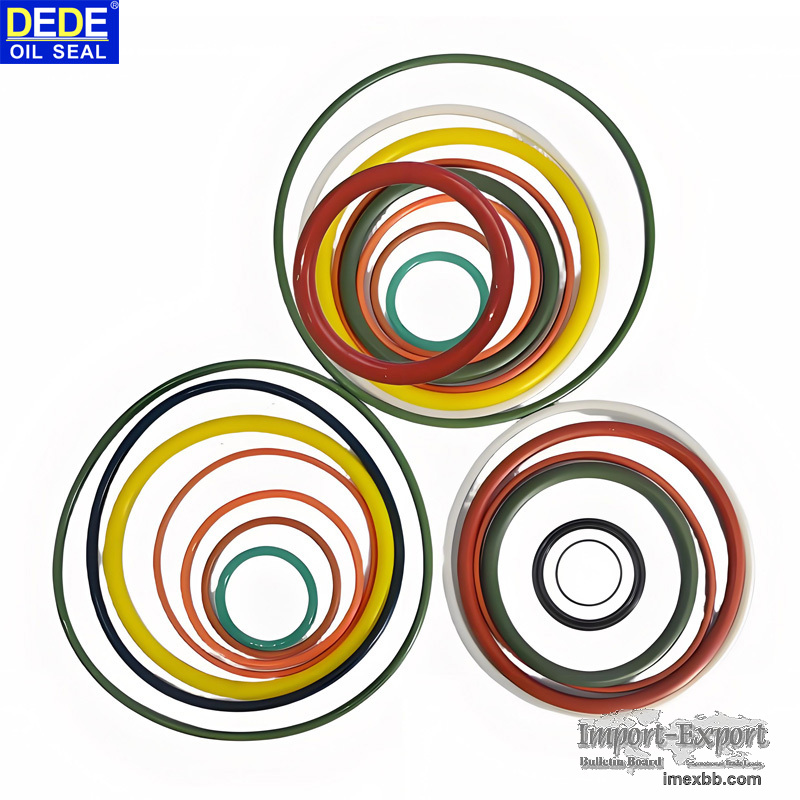

Vacuum Suction Cup O Ring for Sorting Robots NBR FKM Material Options

In sorting robot systems, the sealing performance of vacuum suction cups
directly determines gripping stability and overall operational reliability.

As a critical sealing element, the O-ring plays a decisive role in vacuum
system performance. Its material selection, dimensional matching, and
installation accuracy are key factors influencing vacuum stability. To
achieve consistent and repeatable vacuum adsorption, the following aspects
should be carefully controlled.

Principles for O-Ring Material Selection

Material selection should be based on actual operating conditions, including
vacuum level, temperature range, media exposure, and service life
requirements, rather than simply choosing the highest-grade material
available.

Nitrile Rubber (NBR)

NBR offers good wear resistance, stable elasticity, and excellent cost
performance.

Typical operating temperature ranges from -40°C to 125°C.

Suitable applications include standard sorting environments, systems without
aggressive chemical media, and low- to medium-temperature vacuum
applications.

Due to its balanced performance and cost efficiency, NBR is widely used in
vacuum suction cups for sorting robots.

Fluoroelastomer (FKM)

FKM is characterized by excellent high-temperature resistance, chemical
stability, and low outgassing properties.

Its maximum operating temperature can reach approximately 250°C.

It is suitable for high-temperature environments, applications with oil mist
or chemical exposure, and vacuum systems with higher stability requirements.

Under demanding operating conditions, FKM provides superior long-term
sealing reliability.

Perfluoroelastomer (FFKM)

FFKM offers outstanding resistance to extreme temperatures, up to about
325°C, as well as strong acids and alkalis.

It is typically used in extreme operating conditions or high-end
applications such as semiconductor manufacturing, chemical processing, and
advanced automation systems.

Due to its high cost, FFKM is generally reserved for specialized or premium
projects.

Installation and Structural Design Considerations

In practical applications, installation accuracy often has an equal or even
greater impact on vacuum stability than material selection.

Compression Ratio Control

For dynamic sealing, the recommended compression ratio is 6 to 20 percent.

For static sealing, the compression ratio should be maintained between 15
and 30 percent.

Insufficient compression can lead to leakage, while excessive compression
accelerates material aging and reduces service life.

Seal Groove Design

The groove width should be at least 1.4 times the O-ring cross-section
diameter.

The groove inner diameter should be slightly smaller than the O-ring inner
diameter to ensure proper pre-compression after installation.

A well-designed groove helps prevent rolling, extrusion, or instability of
the O-ring during operation.

Surface Finish Requirements

The recommended surface roughness of the sealing area is Ra 0.8 micrometers
or better.

Groove surfaces should be free of burrs and sharp edges to avoid cutting
damage or stress concentration.

High-quality surface finishing is essential to minimize micro-leakage in
vacuum systems.

Common Issues and Practical Recommendations

Avoid using lubricants containing molybdenum disulfide, as such additives
may react adversely with rubber materials and shorten sealing life.

For high-vacuum applications, gas permeability and outgassing performance
should be carefully considered, with preference given to low-outgassing
materials.

A regular inspection and replacement schedule should be established. O-rings
showing signs of hardening, deformation, or cracking should be replaced
promptly.

The suction cup and workpiece surfaces should be kept clean. Dust, oil
contamination, or foreign particles can directly compromise sealing contact
and reduce adsorption efficiency.

Stable vacuum adsorption in sorting robots is not determined by a single
component but by the combined effect of material selection, structural
design, and installation quality.

By selecting appropriate O-ring materials, optimizing sealing groove design,
and following standardized installation procedures, the stability and
service life of vacuum systems can be significantly improved.

For application-specific optimization based on operating conditions,
equipment models, or large-scale deployment, further technical discussion is
always recommended.

Minimum Order: 1000 pieces
